Industrie Panel PCs

Panel-PC Transport

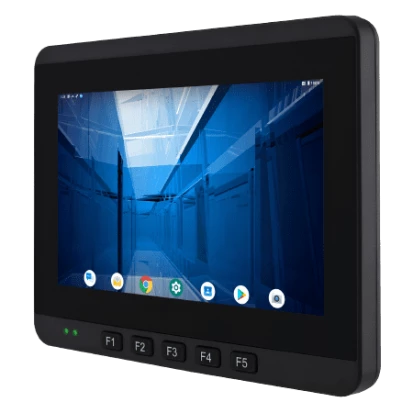

FM07M

FM07M

ART. NR.:: 09875300

7" Vehicle Fanless Panel PC, IP65, 1024x600 TFT LCD, 1000cd/m2, PCAP Touch, ARM 4xCortex-A53 2.0GHz SoC, 4GB DDR3L RAM, 32GB eMMC, 1xGbE M12 LAN, 1xDB9 (2xUSB), 1xMicroUSB, 8-bit DIO/CAN, MicroSD, Audio, WiFi/BT/GPS, 9-24VDC-in, Android 11, -20..60C

Preis auf Anfrage

Aufbau

Gehäuse

Magnesiumlegierung

Einbaumöglichkeit

Wall VESA 75

Schutzlevel Gehäuse

IP65

Typ

Aktiver Lüfter

Display

Bildschirmtyp

LCD TFT

Diagonale

7 "

Maximale Auflösung

1024x600 Dots

Helligkeit

1000 Cd/m2

Kontrastverhältnis

700~1

Touch Screen

Touch Screen Art

kapazitiv

CPU

Installierter Prozessor

ARM Cortex-A53

Socket

CPU onboard

Maximale CPU-Frequenz

2 GHz

Chipsatz

Chipsatz

SoC

Speicher

Formfaktor

DDR4

ECC

No

Standard Onboard Speicher

4 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

integriert im Prozessor

Ethernet

Ethernet gesamt

1

10/100/1000 Mbit/s

1

Wi-Fi

WLAN IEEE-Norm

Yes

Schnittstellen Seriell / Parallel

COM gesamt

1

RS-232

1

USB gesamt

3

USB 2.0

3

Digital Eingang / Ausgang

Gesamtanzahl

8

Industrie Protokolle

CAN Port

1

Schnittstelle

MicroSD Speicherkarten-Slots

1

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher-Formfaktor

eMMC

Massenspeicher 1. Kapazität

32 GB

Steckplätze

SIM-Karten Steckplätze

Yes, 1

Antennen Eigenschaften

Mobilfunk

4G (Optional)

Zusätzliche Funktionen

GPS

GPS, GLONASS

Status LEDs / Schalter

LED

LED Panel

Schalter

On/Off, Funktionstasten

Schnittstellen

Schnittstellen

2xDB9, SIM Card Slot, DB9 DIO, 1xMicro USB, MicroSD card slot, M12 DC-in, M12 LAN

Stromversorgung

Eingangsspannung DC

9..24 V

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Ubuntu 20.04

Betriebssystem installiert

Android

Maße und Gewicht

Breite

190 mm

Höhe

146 mm

Tiefe

40 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-20..60 °C

Luftfeuchtigkeit

10-95%

Vibration

MILSTD810H Method 514.8 Procedure I

Schock

MILSTD810H Method 516.6 Procedure I

Normen und Zertifikate

Zertifizierungen

CE/FCC

MIL-STD-810

MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810H Test Method 514.8 Vibration

Maße

Bruttogewicht

1.7 kg

Nettogewicht

1.25 kg

Dokumente

FM07M-Datasheet.pdf

Produktanfrage

ART. NR.:: 09875300

FM07M

FM07M
