FM07E

FM07E

ART. NR.:: 09905500

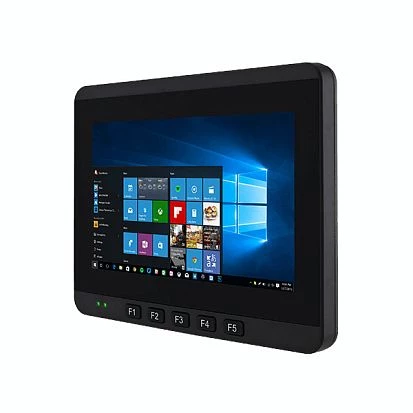

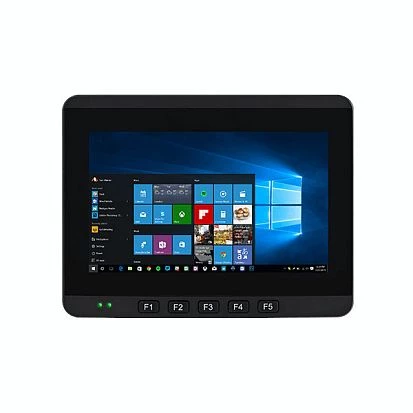

7" Vehicle Fanless Panel PC, 1024x600, P-CAP Touch, IP65, Intel Celeron N6210 1.2GHz CPU, 4GB DDR4 RAM, 128GB M.2 SSD, 1xGbE M12 LAN, WiFi/BT, GPS, 1xDB9 for 2xUSB, 1xCOM, 2xCAN, 1x8-bit DIO, 1xSIM, Audio, TPM 2.0, Win 10 IoT, 9-36VDC-in, -20..60C

Preis auf Anfrage

Aufbau

Gehäuse

Magnesiumlegierung

Einbaumöglichkeit

Wall VESA 75

Schutzlevel Frontseite (Panel)

IP65

Schutzlevel Gehäuse

IP65

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

7 "

Helligkeit

1000 Cd/m2

Kontrastverhältnis

700~1

Touch Screen

Touch Screen Art

kapazitiv

CPU

CPU Generation/Familie

Elkhart Lake

Installierter Prozessor

Celeron N6210

Chipsatz

Chipsatz

Intel SoC

Speicher

ECC

No

Standard Onboard Speicher

4 GB

Maximum Speicher

16 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor, Intel UHD Graphics

Ethernet

Ethernet gesamt

1

10/100/1000 Mbit/s

1

Wi-Fi

WLAN IEEE-Norm

Yes

Schnittstellen Seriell / Parallel

COM gesamt

1

USB gesamt

2

USB 2.0

2

Digital Eingang / Ausgang

Gesamtanzahl

8

Industrie Protokolle

CAN Port

2

Steckplätze

Gesamtanzahl

1

M.2

1

Status LEDs / Schalter

LED

1xHDD LED, Power LED

Schalter

On/Off, Funktionstasten

Schnittstellen

Schnittstellen

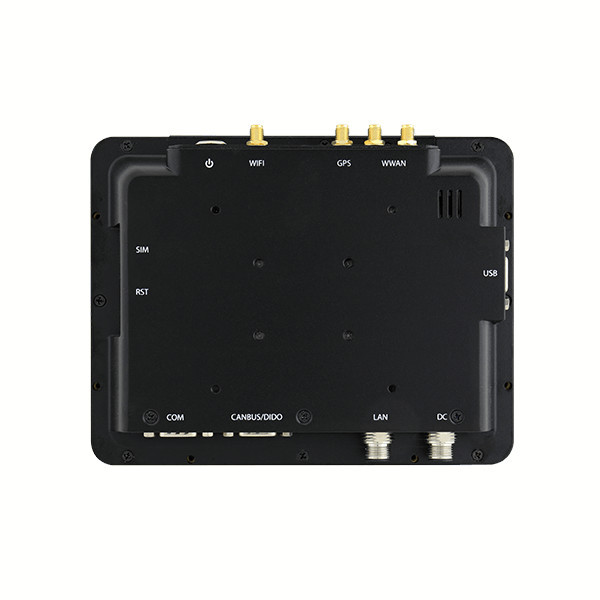

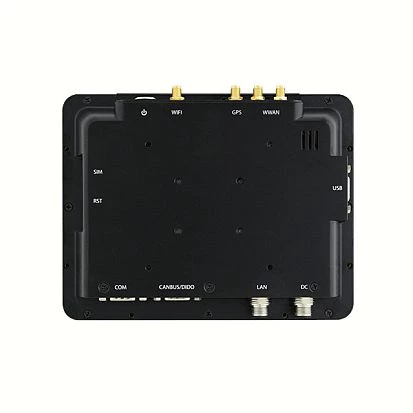

2xDB9, SIM Card Slot, DB15 CAN Bus, M12 DC-in, M12 LAN

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Software

Betriebssystem installiert

Windows IoT Enterprise 10

Maße und Gewicht

Breite

190 mm

Höhe

146 mm

Tiefe

40 mm

Normen und Zertifikate

Zertifizierungen

CE/FCC

MIL-STD-810

MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock

Maße

Bruttogewicht

1.8 kg

Nettogewicht

1.25 kg

Dokumente

FM07E-Datasheet.pdf
