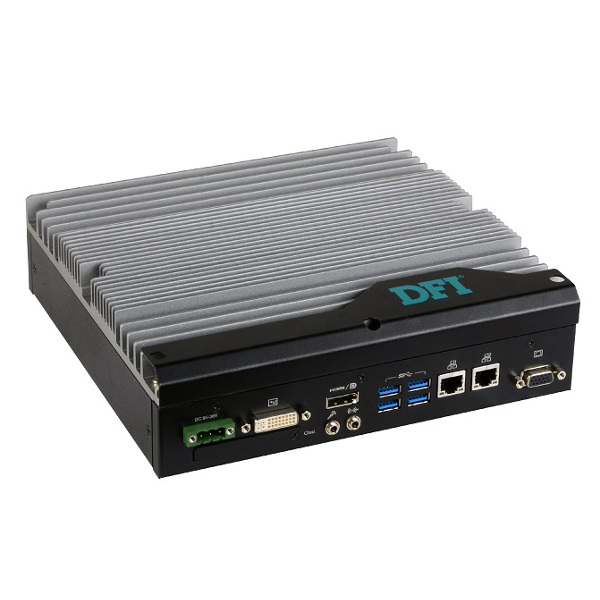

EC500-SD4061

EC500-SD4061

ART. NR.:: 56359400

Modular-Designed Embedded System, 6th Generation Intel Core Processors i3/i5/i7, LGA 1151 Socket, up to 32GB 1866/2133MHz SODIMM DDR4,cFast, VGA, DVI, HDMI, 2xLAN, 4xCOM, 6xUSB, 9-36V DC-In

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

Wall, Desktop

CPU

Installierter Prozessor

Intel Core i5-6500TE, Intel Core i3-6100TE, Intel Core i7-6700TE

Socket

LGA1151

Speicher

Formfaktor

DDR4

Maximum Speicher

32 GB

Ethernet

Controller Typ

Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps

10/100/1000 Mbit/s

1

Schnittstellen Seriell / Parallel

COM gesamt

4

RS-232/422/485

4

USB gesamt

6

USB 2.0

2

USB v3.x

4

Schnittstelle

CFast Speicherkarten-Slots

1

Steckplätze

Mini-PCIe/Mini Card

2

Schnittstellen

Schnittstellen

DVI, DVI-D, DB15 VGA, Mic In, Line Out, HDMI/DP

Stromversorgung

Eingangsspannung DC

9 V

Maße und Gewicht

Breite

63 mm

Höhe

265 mm

Tiefe

221 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..45 °C

Maße

Bruttogewicht

6 kg

Nettogewicht

5 kg
