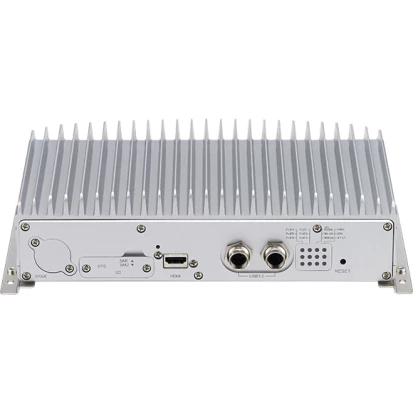

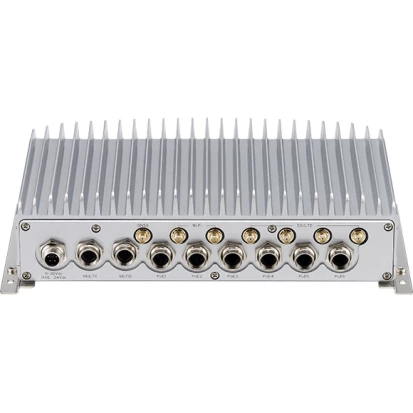

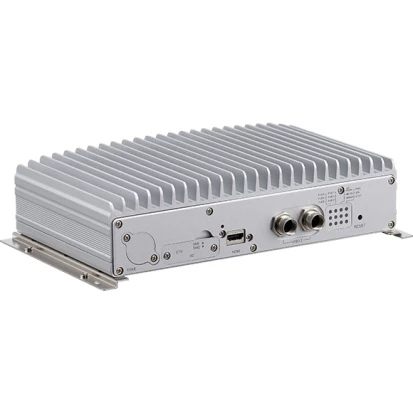

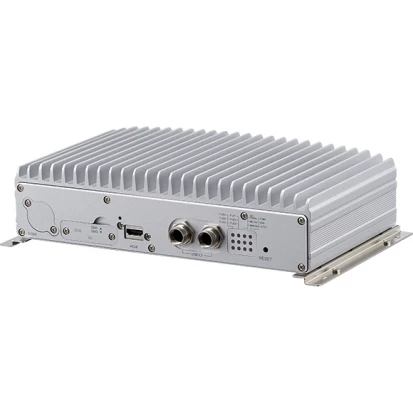

ATC-3750-IP7-6C

ATC-3750-IP7-6C

NEXCOM
ART. NR.:: 57943400
Embedded Vehicle PC, IP67, NVIDIA Jetson AGX Orin 8-Core 2.2GHz SOM, 32GB LPDDR5 RAM, 64GB eMMC, 1xHDMI, 6xGbE M12 PoE+ LAN, 2xUSB 3.2, 1xMicro-USB, 2xM17 (2xCOM/8-bit DIO/2xCAN), 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 1xmPCIe, SD, GPS, 9-36VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop, Einbau
Schutzlevel Gehäuse
IP67
Typ
Lüfterlos
CPU
Installierter Prozessor
Nvidia Jetson AGX Orin
Socket
CPU onboard
Maximale CPU-Frequenz
2.2 GHz
Chipsatz
Chipsatz
SoC
Speicher
Formfaktor
DDR5
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
32 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
NVIDIA Ampere, 1792-cores, 56 Tensor Cores
Schnitstellen
HDMI
Ethernet
Ethernet gesamt
6
PoE+ 10/100/1000 Mbit/s
6
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
2
USB gesamt
3
USB 2.0
1
USB v3.x
2
Digital Eingang / Ausgang
Gesamtanzahl
8
Industrie Protokolle
CAN Port
2
Schnittstelle
M.2
1
SD Speicherkarten-Slots
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
eMMC
Massenspeicher 1. Kapazität
64 GB
Steckplätze
Gesamtanzahl
4
M.2
3
M.2 Formfaktor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM-Karten Steckplätze
Yes, 2, Nano SIM
Zusätzliche Funktionen
GPS
GPS, GLONASS
Status LEDs / Schalter
LED
Power LED, PoE+ LED, WLAN LED, WWAN LED, SSD LED
Schnittstellen
Schnittstellen
HDMI, 2xUSB, 6xM12, DC input (terminal block), 1xMicro USB, SD card slot, 2xSIM Card Slot
Stromversorgung
Eingangsspannung DC
24..24 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Linux OS, Ubuntu 20.04
Maße und Gewicht
Breite
260 mm
Höhe
172.8 mm
Tiefe
66.5 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-25..70 °C
Luftfeuchtigkeit
10-95%
Vibration
Vibration in operating: MIL-STD-810H, 514.8C Procedure 6, Category 4; IEC 60068-2-64: 2.0g@5~500 Hz, Vibration in storage: MIL-STD-810G, 514.6E Procedure 1, Category 24, 7.7g
Schock
MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g; Crash hazard: Procedure V, ground equipment=75g
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810H Test Method 514.8 Vibration
Bahnfahrzeuge
EN 50155
Automotive
e13 Mark
Vibration und Schock
IEC 60068-2-64
Maße
Bruttogewicht
4.7 kg
Nettogewicht
3.5 kg

Dokumente
ATC-3750-IP7-6C-Datasheet.pdf
