Airtop2-build-to-order

Gehäuse:

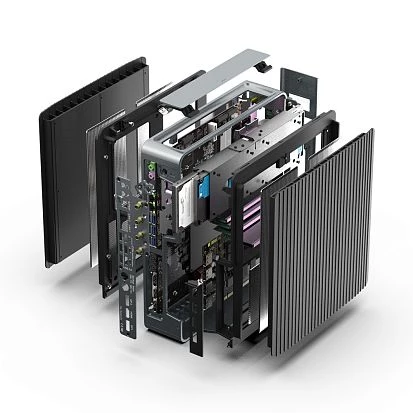

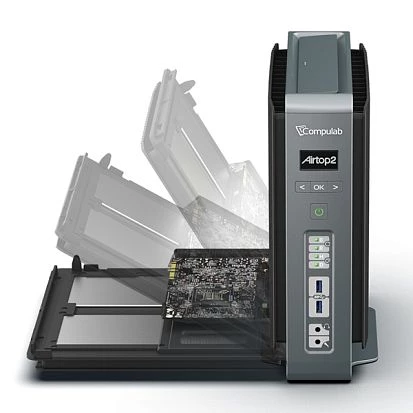

Aluminiumgehäuse ( Passive cooling, Tool-free clamshell opening with Kensington lock)

Einbaumöglichkeit:

Desktop (Optional Wall mounting bracket or DIN rail mounting)

Chipsatz:

Intel C246

Speichertyp:

DDR4 2666

Bauweise:

herausnehmbar

Maximum Speicher:

64 GB

ECC:

No (Yes depends from CPU)

Grafikcontroller:

integriert im Prozessor (integrated graphics can work in conjunction with discrete graphics for a total of 7 simultaneous displays.)

10/100/1000 Mbit/s:

2

RS-232:

3 (Opional FM-SER Module with 6x RS232 / RS485)

Audio Controller:

Realtek HD Audio Codec (Realtek ALC1150 )

2.5" intern:

4 (4x disks up to 9.5mm or 2x 15mm disks)

PCI Express x16:

1 (Optional graphics card NVIDIA GTX 1660 6 GB or Quadro RTX 4000 8 GB)

Schnittstellen:

HDMI, 2xRJ45 Ethernet, 6xUSB, Line In, Line Out, 2xDisplayPort, 2xDC Input (3x Mini-Serial)

Eingangsspannung DC:

19 ... 24 V

Stromversorgung Reserve-Eingang Spannung DC:

19 ... 24 V

Breite:

100 mm

Höhe:

300 mm

Tiefe:

255 mm

Temperatur:

-40 ... 70 °C (When ordered in industrial temperature range. Commercial and extended temperature range are available: Standard: 0°C – 40°C, Extended: -20°C – 70°C, Industrial: -40°C – 70°C)

Feuchtigkeit:

5 ... 95 % (non-condensing)

Name:

Compulab
