Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded Industrie Edge Computer

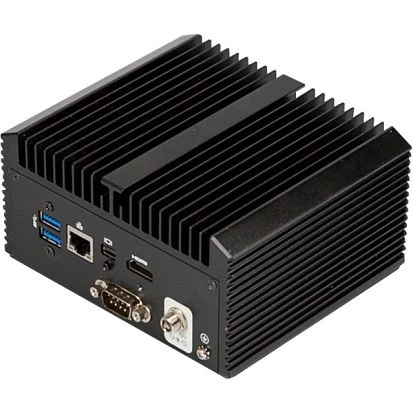

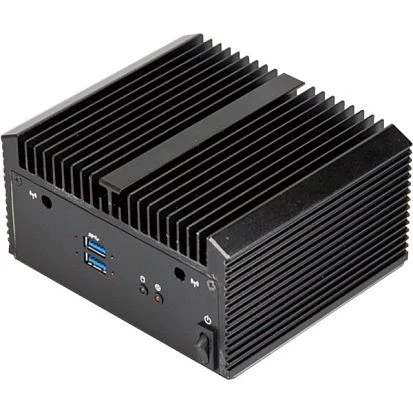

QBiX-KBLA7100H-A1

QBiX-KBLA7100H-A1

ART. NR.:: 57044100

Fanless Embedded PC QBiX, Intel Core i3-7100U 2.4 GHz CPU, 2x DDR4 SO-DIMM, 1xminiDP, 1xHDMI, 1xGbE, 4xUSB 3.0, 4xUSB 3.0, 1xRS-232, 1x2.5" HDD bay, M.2 2280 Key B/M, M.2 2230 Key E, 12..24V DC-In, DC power adapter

Abgekündigt

CPU

CPU Generation/Familie

Kaby Lake

Installierter Prozessor

Intel Core i3-7100U

Maximale CPU-Frequenz

2.4 GHz

Speicher

Formfaktor

DDR4

Maximum Speicher

32 GB

Ethernet

Controller Typ

Intel i219-V 10/100/1000 Mbps

10/100/1000 Mbit/s

1

Schnittstellen Seriell / Parallel

COM gesamt

1

USB gesamt

4

USB v3.x

4

Laufwerksschächte

Gesamtanzahl

1

2.5" intern

1

Steckplätze

M.2

2

Schnittstellen

Schnittstellen

DB9, HDMI, 4xUSB, Audio, DC Input

Stromversorgung

Eingangsspannung DC

12 V

Maße und Gewicht

Breite

138 mm

Höhe

74.2 mm

Tiefe

118 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Maße

Bruttogewicht

2.06 kg

Nettogewicht

1.36 kg

CPU

CPU Generation/Familie

Kaby Lake

Installierter Prozessor

Intel Core i3-7100U

Maximale CPU-Frequenz

2.4 GHz

Speicher

Formfaktor

DDR4

Maximum Speicher

32 GB

Ethernet

Controller Typ

Intel i219-V 10/100/1000 Mbps

10/100/1000 Mbit/s

1

Schnittstellen Seriell / Parallel

COM gesamt

1

USB gesamt

4

USB v3.x

4

Laufwerksschächte

Gesamtanzahl

1

2.5" intern

1

Steckplätze

M.2

2

Schnittstellen

Schnittstellen

DB9, HDMI, 4xUSB, Audio, DC Input

Stromversorgung

Eingangsspannung DC

12 V

Maße und Gewicht

Breite

138 mm

Höhe

74.2 mm

Tiefe

118 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Maße

Bruttogewicht

2.06 kg

Nettogewicht

1.36 kg

CPU

CPU Generation/Familie

Kaby Lake

Installierter Prozessor

Intel Core i3-7100U

Maximale CPU-Frequenz

2.4 GHz

Speicher

Formfaktor

DDR4

Maximum Speicher

32 GB

Ethernet

Controller Typ

Intel i219-V 10/100/1000 Mbps

10/100/1000 Mbit/s

1

Schnittstellen Seriell / Parallel

COM gesamt

1

USB gesamt

4

USB v3.x

4

Laufwerksschächte

Gesamtanzahl

1

2.5" intern

1

Steckplätze

M.2

2

Schnittstellen

Schnittstellen

DB9, HDMI, 4xUSB, Audio, DC Input

Stromversorgung

Eingangsspannung DC

12 V

Maße und Gewicht

Breite

138 mm

Höhe

74.2 mm

Tiefe

118 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Maße

Bruttogewicht

2.06 kg

Nettogewicht

1.36 kg

CPU

CPU Generation/Familie

Kaby Lake

Installierter Prozessor

Intel Core i3-7100U

Maximale CPU-Frequenz

2.4 GHz

Speicher

Formfaktor

DDR4

Maximum Speicher

32 GB

Ethernet

Controller Typ

Intel i219-V 10/100/1000 Mbps

10/100/1000 Mbit/s

1

Schnittstellen Seriell / Parallel

COM gesamt

1

USB gesamt

4

USB v3.x

4

Laufwerksschächte

Gesamtanzahl

1

2.5" intern

1

Steckplätze

M.2

2

Schnittstellen

Schnittstellen

DB9, HDMI, 4xUSB, Audio, DC Input

Stromversorgung

Eingangsspannung DC

12 V

Maße und Gewicht

Breite

138 mm

Höhe

74.2 mm

Tiefe

118 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Maße

Bruttogewicht

2.06 kg

Nettogewicht

1.36 kg

Dokumente

Datasheet_QBiX_KBLA7100H_A1__35589709.pdf

Dokumente

Datasheet_QBiX_KBLA7100H_A1__35589709.pdf

Dokumente

Datasheet_QBiX_KBLA7100H_A1__35589709.pdf

Dokumente

Datasheet_QBiX_KBLA7100H_A1__35589709.pdf

Antrag auf Ersetzung

ART. NR.:: 57044100

QBiX-KBLA7100H-A1

QBiX-KBLA7100H-A1
