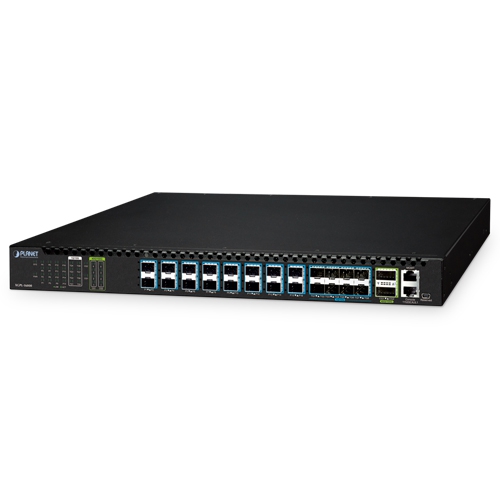

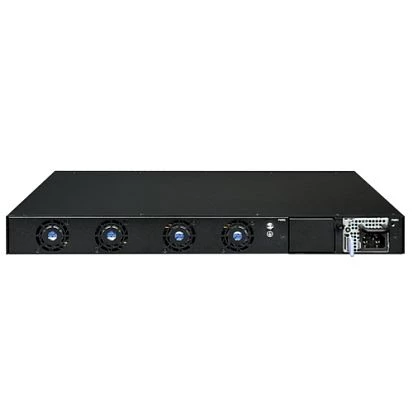

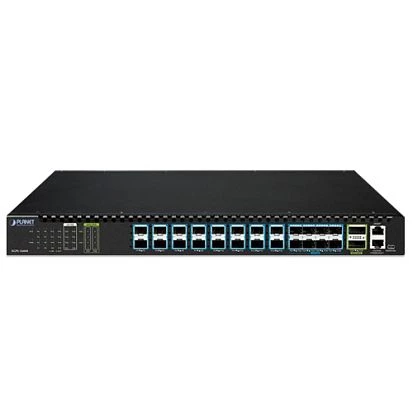

XGPL-16000

ART. NR.:: 80089200

16-Port XGS-PON OLT, 8x10GBase-SR/LR SFP+, 2x100G QSFP28, 1x10/100Base-TX management port, 1xCOM console port, RAM 2048Mb, Flash Memory 4096Mb, 100..240VAC, 36..72VDC, Operating Temperature 0..50C

Preis auf Anfrage

Ethernet

10/100 Mbit/s

10 Gbit SFP+ Ports

QSFP+ 100 Gigabit/s Ethernet

Switch Properties

Jumbo Frame Size

9 kB

Netzwerk

Protokoll Layer 3

Static Routing, RIP V1/V2, OSPF, BGP

Steuerungsprotokolle

HTTP, LLDP, Syslog, Telnet, DHCP, NTP, SNTP, TFTP, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, SNMPv1/v2c

Reservierungs-Protokolle

MSTP, STP, RSTP

Sicherheitsprotokolle

RADIUS, SSL, TACACS+, SSH2

IEEE Norm

IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet

Systemleistung

Eingangsspannung DC

36..72 V

Eingangsspannung AC

100..240 V

Maße und Gewicht

Breite

442.5 mm

Tiefe

280 mm

Höhe

44.6 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Luftfeuchtigkeit

5-90%

Normen und Zertifikate

Zertifizierungen

CE, FCC

Maße

Bruttogewicht

5.6 kg

Nettogewicht

4.6 kg

Ethernet

10/100 Mbit/s

10 Gbit SFP+ Ports

QSFP+ 100 Gigabit/s Ethernet

Switch Properties

Jumbo Frame Size

9 kB

Netzwerk

Protokoll Layer 3

Static Routing, RIP V1/V2, OSPF, BGP

Steuerungsprotokolle

HTTP, LLDP, Syslog, Telnet, DHCP, NTP, SNTP, TFTP, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, SNMPv1/v2c

Reservierungs-Protokolle

MSTP, STP, RSTP

Sicherheitsprotokolle

RADIUS, SSL, TACACS+, SSH2

IEEE Norm

Systemleistung

Eingangsspannung DC

36..72 V

Eingangsspannung AC

100..240 V

Maße und Gewicht

Breite

442.5 mm

Tiefe

280 mm

Höhe

44.6 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Luftfeuchtigkeit

5-90%

Normen und Zertifikate

Zertifizierungen

CE, FCC

Maße

Bruttogewicht

5.6 kg

Nettogewicht

4.6 kg

Ethernet

10/100 Mbit/s

10 Gbit SFP+ Ports

QSFP+ 100 Gigabit/s Ethernet

Switch Properties

Jumbo Frame Size

9 kB

Netzwerk

Protokoll Layer 3

Static Routing, RIP V1/V2, OSPF, BGP

Steuerungsprotokolle

HTTP, LLDP, Syslog, Telnet, DHCP, NTP, SNTP, TFTP, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, SNMPv1/v2c

Reservierungs-Protokolle

MSTP, STP, RSTP

Sicherheitsprotokolle

RADIUS, SSL, TACACS+, SSH2

IEEE Norm

Systemleistung

Eingangsspannung DC

36..72 V

Eingangsspannung AC

100..240 V

Maße und Gewicht

Breite

442.5 mm

Tiefe

280 mm

Höhe

44.6 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Luftfeuchtigkeit

5-90%

Normen und Zertifikate

Zertifizierungen

CE, FCC

Maße

Bruttogewicht

5.6 kg

Nettogewicht

4.6 kg

Ethernet

10/100 Mbit/s

10 Gbit SFP+ Ports

QSFP+ 100 Gigabit/s Ethernet

Switch Properties

Jumbo Frame Size

9 kB

Netzwerk

Protokoll Layer 3

Static Routing, RIP V1/V2, OSPF, BGP

Steuerungsprotokolle

HTTP, LLDP, Syslog, Telnet, DHCP, NTP, SNTP, TFTP, FTP, IGMP Snooping v1/v2/v3, IGMP Querier, SNMPv1/v2c

Reservierungs-Protokolle

MSTP, STP, RSTP

Sicherheitsprotokolle

RADIUS, SSL, TACACS+, SSH2

IEEE Norm

Systemleistung

Eingangsspannung DC

36..72 V

Eingangsspannung AC

100..240 V

Maße und Gewicht

Breite

442.5 mm

Tiefe

280 mm

Höhe

44.6 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Luftfeuchtigkeit

5-90%

Normen und Zertifikate

Zertifizierungen

CE, FCC

Maße

Bruttogewicht

5.6 kg

Nettogewicht

4.6 kg

Dokumente

Dokumente

Dokumente

Dokumente

Produktanfrage

XGPL-16000

Industrial 10G PoE Switch, IP30, 24x10/100/1000Base-T Ports with PoE, 4x10/1000Base-X SFP ports, 4x1/2.5G/10GbE SFP+ ports, 1xCOM, Redundant dual input power 110/240VAC, -40..+60C Operating Temperature

ART. NR.:: 80089200
