IS-RH728

IS-RH728

ISON
ART. NR.:: 80294700

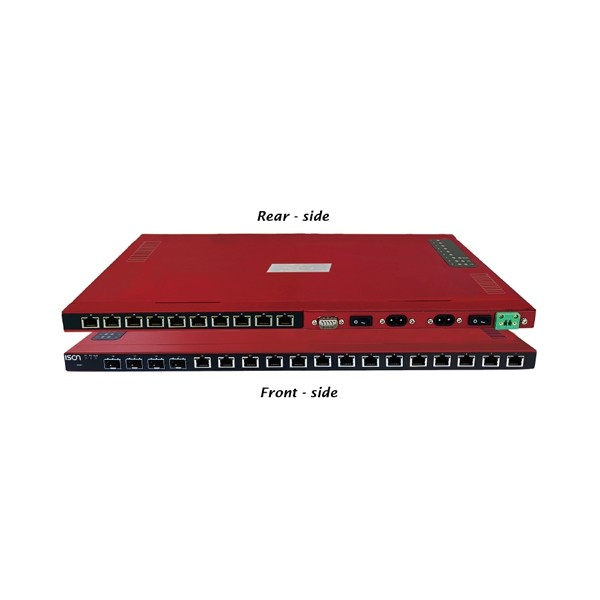

Industrial Managed Switch, IP30, 24x10/100Base-TX, 4x10/100/1000Base-TX, 4x1G Uplink, 100/240 VAC, Operating Temperature -40..75 C
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
Ethernet gesamt
28
10/100 Mbit/s
24
10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
16000
IGMP Groups
255
Netzwerk
Steuerungsprotokolle
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, SNMP, NTP, RMON, TFTP, LACP, CoS, IGMP Snooping v1/v2/v3, IGMP Querier
Reservierungs-Protokolle
ERPS, MSTP, STP, RSTP
Sicherheitsprotokolle
SSH
IEEE Norm
ieee_802.3ae, IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Aufbau
Einbaumöglichkeit
19" Rackmount
Schutzlevel Gehäuse
IP30
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
2.5 kg
Nettogewicht
2 kg
Ethernet
Ethernet gesamt
28
10/100 Mbit/s
24
10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
16000
IGMP Groups
255
Netzwerk
Steuerungsprotokolle
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, SNMP, NTP, RMON, TFTP, LACP, CoS, IGMP Snooping v1/v2/v3, IGMP Querier
Reservierungs-Protokolle
ERPS, MSTP, STP, RSTP
Sicherheitsprotokolle
SSH
IEEE Norm
ieee_802.3ae, IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Aufbau
Einbaumöglichkeit
19" Rackmount
Schutzlevel Gehäuse
IP30
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
2.5 kg
Nettogewicht
2 kg
Ethernet
Ethernet gesamt
28
10/100 Mbit/s
24
10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
16000
IGMP Groups
255
Netzwerk
Steuerungsprotokolle
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, SNMP, NTP, RMON, TFTP, LACP, CoS, IGMP Snooping v1/v2/v3, IGMP Querier
Reservierungs-Protokolle
ERPS, MSTP, STP, RSTP
Sicherheitsprotokolle
SSH
IEEE Norm
ieee_802.3ae, IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Aufbau
Einbaumöglichkeit
19" Rackmount
Schutzlevel Gehäuse
IP30
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
2.5 kg
Nettogewicht
2 kg
Ethernet
Ethernet gesamt
28
10/100 Mbit/s
24
10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
16000
IGMP Groups
255
Netzwerk
Steuerungsprotokolle
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, SNMP, NTP, RMON, TFTP, LACP, CoS, IGMP Snooping v1/v2/v3, IGMP Querier
Reservierungs-Protokolle
ERPS, MSTP, STP, RSTP
Sicherheitsprotokolle
SSH
IEEE Norm
ieee_802.3ae, IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Aufbau
Einbaumöglichkeit
19" Rackmount
Schutzlevel Gehäuse
IP30
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
2.5 kg
Nettogewicht
2 kg

Dokumente
IS-RH728-Datasheet.pdf
Dokumente
IS-RH728-Datasheet.pdf
Dokumente
IS-RH728-Datasheet.pdf
Dokumente
IS-RH728-Datasheet.pdf
