WTP-9H66-22W-i5-PCT

WTP-9H66-22W-i5-PCT

ART. NR.:: 80393800

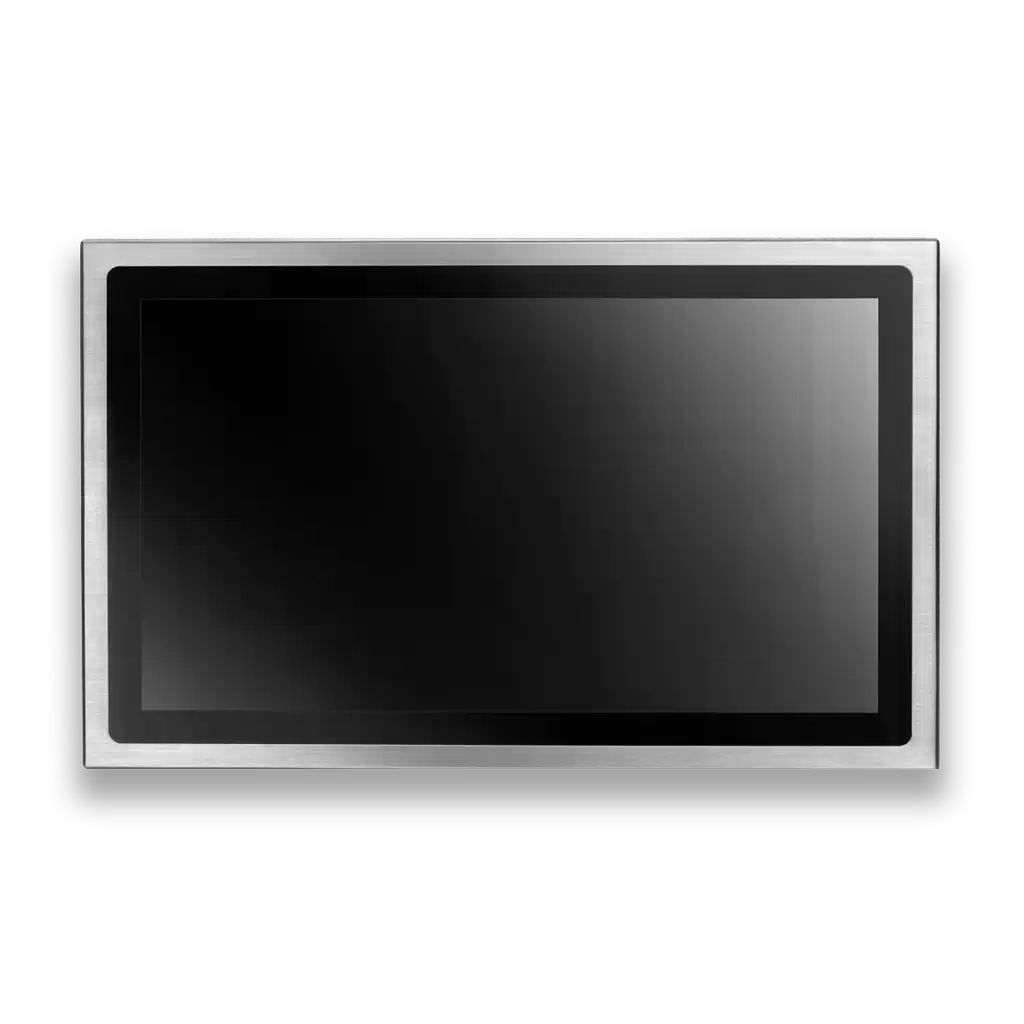

21.5" Stainless Steel Panel PC, IP66/IP69K/NEMA4X, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i5-1245UE CPU, 4GB DDR4 RAM, 512GB 2.5" SSD, 6xM12 (LAN, 4xUSB, 2xCOM, DC-In), USB-C 3.2, M.2 Key-M, M.2 Key-B, M.2 Key-E, 12-28VDC-in with PSU

Preis auf Anfrage

Aufbau

Gehäuse

Edelstahl

Einbaumöglichkeit

Wall, Wall VESA 100

Schutzlevel Frontseite (Panel)

IP66, IP69K

Schutzlevel Gehäuse

IP66, NEMA 4X, IP69K

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

21.5 "

Maximale Auflösung

1920x1080 Dots

Seitenverhältnis

16:9

Helligkeit

250 Cd/m2

Kontrastverhältnis

1000~1

Touch Screen

Touch Screen Art

kapazitiv

CPU

CPU Generation/Familie

Alder Lake

Installierter Prozessor

Intel Core i5-1245UE

Socket

FCBGA1744

Maximale CPU-Frequenz

4.4 GHz

Chipsatz

Chipsatz

Intel SoC

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

ECC

No

Standard Onboard Speicher

4 GB

Maximum Speicher

64 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor

Ethernet

Ethernet gesamt

1

10/100/1000 Mbit/s

1

Wi-Fi

WLAN IEEE-Norm

Yes (Optional)

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232/422/485

2

USB gesamt

5

USB 2.0

4

USB v3.x

1

Schnittstelle

SATA 3

1

M.2

1

Laufwerksschächte

Gesamtanzahl

1

2.5" intern

1

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher-Formfaktor

2.5"

Massenspeicher-Schnittstelle

SATA

Massenspeicher 1. Kapazität

512 GB

Steckplätze

Gesamtanzahl

3

M.2

3

M.2 Formfaktor

2242 M, 2280 M, 2230 E, 3052 B, 3042 B, 2260 M

SIM-Karten Steckplätze

Yes, 1

Antennen Eigenschaften

Mobilfunk

4G (Optional), 5G (Optional)

Status LEDs / Schalter

Schalter

On/Off

Schnittstellen

Schnittstellen

M12 DC-in, USB type C, M12 LAN, 2xM12 A-code USB, 2xM12 COM

Stromversorgung

Eingangsspannung DC

12..28 V

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Ausgangsleistung

120 W

Eingangsspannung AC

100-240 V

Software

Betriebssystemkompatibilität

Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise

Maße und Gewicht

Breite

557 mm

Höhe

348.5 mm

Tiefe

58.5 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-20..60 °C

Luftfeuchtigkeit

10-90%

Normen und Zertifikate

Zertifizierungen

CE, FCC Class B, VCCI

Maße

Bruttogewicht

13.5 kg

Nettogewicht

12 kg

Dokumente

WTP-9H66-22W-Series-Datasheet.pdf
