W12IE3S-VMM9

W12IE3S-VMM9

Winmate
ART. NR.:: 10752900

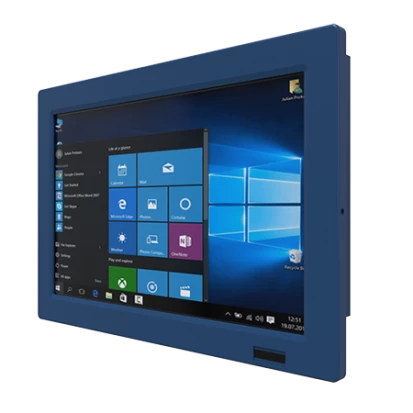

12.1" Vehicle Panel PC, G-WIN VM Series, EN50155 Compliant, IP65 Front, 1280x800, 400cd/m2 (HB Opt.), Intel Celeron N6211 CPU, 4GB DDR4 RAM, 128GB SATA SSD, HDMI Opt., 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 1xM.2 2230 Key-E, 1xM.2 2242 Key-B, 10-60VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall VESA 75
Schutzlevel Frontseite (Panel)
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
12.1 "
Maximale Auflösung
1280x800 Dots
Helligkeit
400 Cd/m2
Kontrastverhältnis
1000~1
CPU
CPU Generation/Familie
Elkhart Lake
Installierter Prozessor
Celeron N6211
Socket
CPU onboard
Maximale CPU-Frequenz
3 GHz
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR4
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
4 GB
Maximum Speicher
16 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor, Intel UHD Graphics
Ethernet
Ethernet gesamt
2
2,5 Gbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
2
USB v3.x
2
Schnittstelle
M.2
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
M.2
Massenspeicher-Schnittstelle
SATA
Massenspeicher 1. Kapazität
128 GB
Steckplätze
Gesamtanzahl
2
M.2
2
M.2 Formfaktor
2242 M, 2230 E
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off, Tastenfeld
Schnittstellen
Schnittstellen
2xDB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
Stromversorgung
Eingangsspannung DC
10..60 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Maße und Gewicht
Breite
310 mm
Höhe
215 mm
Tiefe
52.7 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..55 °C
Luftfeuchtigkeit
10-90%
Normen und Zertifikate
Zertifizierungen
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Bahnfahrzeuge
EN 50155
Maße
Bruttogewicht
3.5 kg
Nettogewicht
2.8 kg

Dokumente
W12IE3S-VMM9(HB)-Datasheet.pdf
