R10IE3S-VMT2

R10IE3S-VMT2

Winmate
ART. NR.:: 10752700

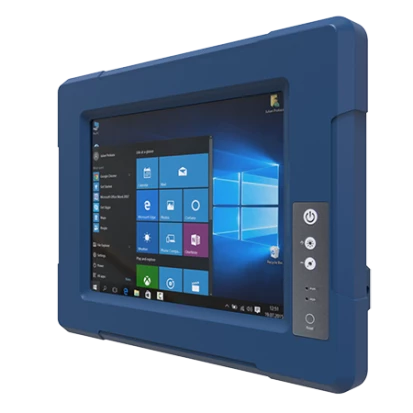

10.4" Vehicle Panel PC, G-WIN VM Series, IP65 Front, 1024x768, 350cd/m2 (HB Opt.), Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB SATA SSD, HDMI Opt., 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 1xM.2 2230 Key-E, 1xM.2 2242 Key-B, 10-60VDC-in, -10..55C
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall VESA 75, Yoke mounting
Schutzlevel Frontseite (Panel)
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
10.4 "
Maximale Auflösung
1024x768 Dots
Helligkeit
350 Cd/m2
Kontrastverhältnis
1000~1
CPU
CPU Generation/Familie
Elkhart Lake
Installierter Prozessor
Celeron N6211
Socket
FCBGA1493
Maximale CPU-Frequenz
3 GHz
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR4
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
4 GB
Maximum Speicher
16 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor, Intel UHD Graphics
Ethernet
Ethernet gesamt
2
2,5 Gbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
2
USB v3.x
2
Schnittstelle
M.2
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
M.2
Massenspeicher-Schnittstelle
SATA
Massenspeicher 1. Kapazität
128 GB
Steckplätze
Gesamtanzahl
2
M.2
2
M.2 Formfaktor
2242 M, 2230 E
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off, Tastenfeld
Schnittstellen
Schnittstellen
2xDB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
Stromversorgung
Eingangsspannung DC
10..60 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Windows 11, Ubuntu 20.04
Maße und Gewicht
Breite
315 mm
Höhe
250 mm
Tiefe
67 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..55 °C
Luftfeuchtigkeit
10-90%
Vibration
MIL­-STD­-810G Method 514.6 Procedure I
Normen und Zertifikate
Zertifizierungen
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Bahnfahrzeuge
EN 50155
Maße
Bruttogewicht
3.3 kg
Nettogewicht
2.9 kg

Dokumente
R10IE3S-VMT2(HB)-Datasheet.pdf
