WTP-9G66-24

WTP-9G66-24

ART. NR.:: 09351900

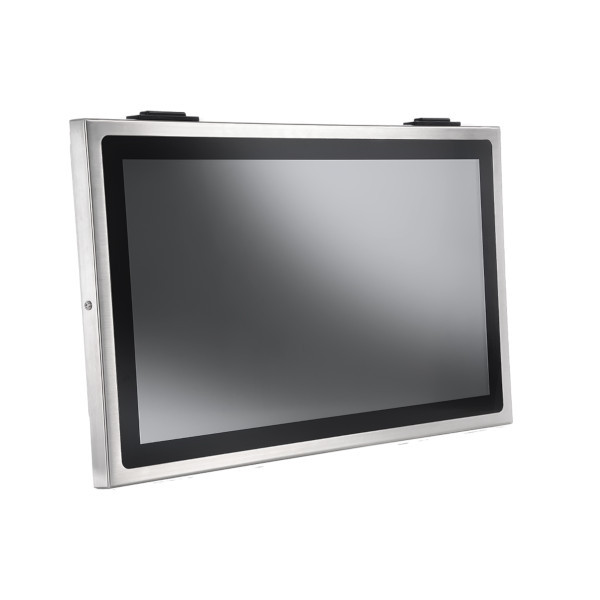

24" Fanless industrial panel PC, P-Cap Full-Flat 10-point touch, Intel Core i5-8365UE 1.6GHz, 4GB DDR4L, 128GB SSD, Mini PCIe, M.2 Type E, cables M12 (USB-dual, USB-single, LAN, 2x COM), 120W AC-DC Adapter

Preis auf Anfrage

Aufbau

Gehäuse

Edelstahl

Einbaumöglichkeit

Wall VESA 100

Schutzlevel Frontseite (Panel)

IP66

Schutzlevel Gehäuse

IP66

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

23.8 "

Maximale Auflösung

1920x1080 Dots

Seitenverhältnis

16:9

Helligkeit

250 Cd/m2

Kontrastverhältnis

3000~1

Touch Screen

Touch Screen Art

kapazitiv

CPU

CPU Generation/Familie

Whiskey Lake

CPU-Support-Typ

Core i5

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

Maximum Speicher

32 GB

Grafik

Grafikcontroller

Intel HD Graphics 620

Ethernet

Ethernet gesamt

1

10/100/1000 Mbit/s

1

Schnittstellen Seriell / Parallel

COM gesamt

2

USB gesamt

2

Schnittstelle

M.2

1

Laufwerksschächte

Gesamtanzahl

1

2.5" intern

1

Steckplätze

M.2

1

Mini-PCIe/Mini Card

1

Schnittstellen

Schnittstellen

6xM12

Stromversorgung

Eingangsspannung DC

9..32 V

Software

Betriebssystemkompatibilität

Windows 10

Maße und Gewicht

Breite

626.6 mm

Höhe

396.1 mm

Tiefe

64 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..40 °C

Normen und Zertifikate

Zertifizierungen

CE, FCC, VCCI

Maße

Bruttogewicht

17 kg

Nettogewicht

14.8 kg

Dokumente

Datasheet_WTP_9G66_24__37100772.pdf
