Industrie Panel PCs

Rugged Panel-PCs

WTP-8B66-19

WTP-8B66-19

ART. NR.:: 06881500

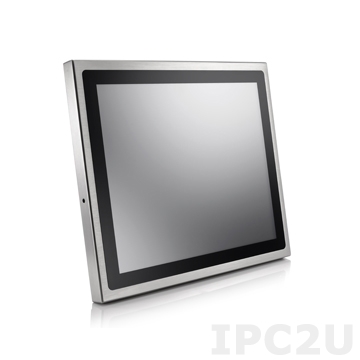

Fanless Stainless Panel PC 19" LCD LED, full IP66,1280 x 1024, 350 nits, with Intel Celeron J1900 2.0GHz, resistive touchscreen, 4GB DDR3, 500GB HDD, 8xM12 (4xUSB, 2xCOM, LAN, DC power), 2xMini-PCIe, power adapter 12V DC

Preis auf Anfrage

Aufbau

Gehäuse

Edelstahl

Einbaumöglichkeit

Wall VESA 100

Schutzlevel Frontseite (Panel)

IP66

Schutzlevel Gehäuse

IP66

Typ

Lüfterlos

Display

Bildschirmtyp

LCD

Diagonale

19 "

Maximale Auflösung

1280x1024 Dots

Helligkeit

350 Cd/m2

Kontrastverhältnis

1000~1

Touch Screen

Touch Screen Art

resistiv

CPU

Installierter Prozessor

Intel Celeron J1900

Maximale CPU-Frequenz

2.42 GHz

Speicher

Formfaktor

DDR3L

Socket Typ

2xSODIMM

Standard Onboard Speicher

2 GB

Maximum Speicher

8 GB

Grafik

Grafikcontroller

integriert im Prozessor

Ethernet

10/100/1000 Mbit/s

1

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232

1

RS-232/422/485

1

USB gesamt

4

Audio

Audio Controller

Realtek ALC262

Einbauschacht

Massenspeicher Typ

HDD

Massenspeicher-Formfaktor

2.5"

Massenspeicher-Schnittstelle

SATA

Massenspeicher 1. Kapazität

500 GB

Steckplätze

Gesamtanzahl

2

Mini-PCIe/Mini Card

2

Status LEDs / Schalter

Schalter

On/Off

Schnittstellen

Schnittstellen

6xM12

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Betriebsbedingungen

Maximale Betriebstemperatur

-20..60 °C

Normen und Zertifikate

Zertifizierungen

CE, FCC, VCCI

Maße

Bruttogewicht

13 kg

Nettogewicht

12 kg

Dokumente

Datasheet_WTP_8B66_19_Rev_01__27305557.pdf
