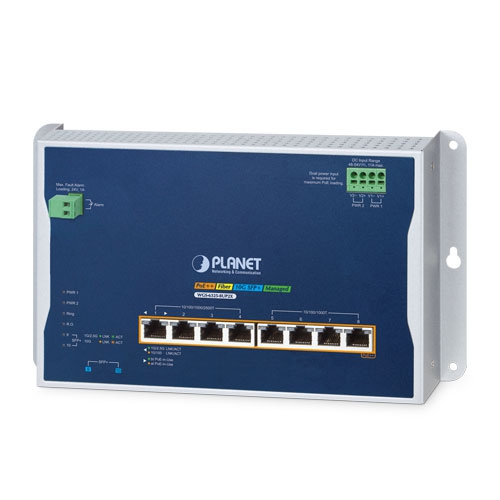

WGS-6325-8UP2X

Name:

Planet Technology Corporation

10/100/1000 Mbit/s:

8

SFP+ 10 Gigabit/s Ethernet:

2

PoE+ 10/100/1000 Mbit/s:

8

Netzwerkprotokoll:

SMTP, SNMPv1/v2c/v3, HTTP, LLDP, SSH, Syslog, Telnet, RADIUS, TACACS+, NTP, IGMP Snooping v1/v2/v3, IGMP Querier

Protokoll Layer 3:

Static Routing, RIP V1/V2, OSPF

IEEE Norm:

IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3ah OAM for Link-Fault Management, IEEE 802.3bz for 2.5GBaseX, IEEE 802.3bt for Power over Ethernet

Eingangsspannung DC:

48 ... 54 V

Temperatur:

-40 ... 75 °C

Feuchtigkeit:

5 ... 95 % (non-condensing)

Temperaturbereich:

-40 ... 85 °C

Feuchtigkeit:

5 ... 95 % (non-condensing)

Einbaumöglichkeit:

Wall

Schutzlevel Gehäuse:

IP30

Breite:

245 mm

Höhe:

36 mm

Tiefe:

140 mm

Zertifizierungen:

CE, FCC Class A

Vibration und Schock:

IEC 60068-2-6, IEC 60068-2-27

Sturz:

IEC 60068-2-32
