Industrie Panel PCs

Rugged Panel-PCs

W10IE3A-67H2-P

W10IE3A-67H2-P

ART. NR.:: 57916600

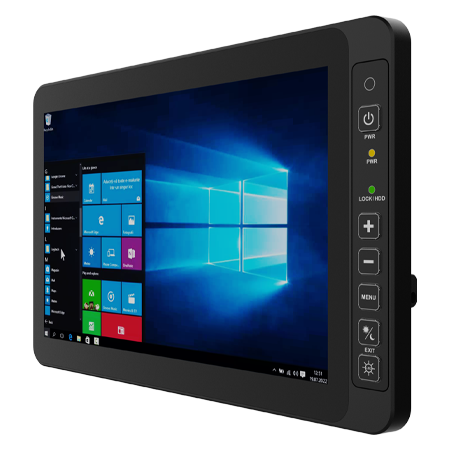

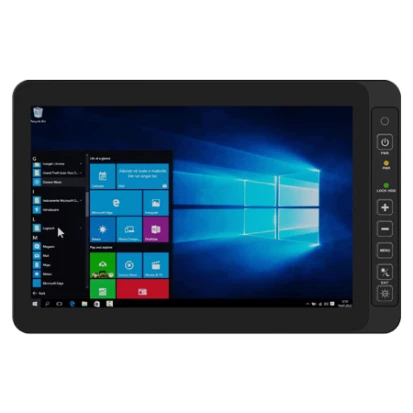

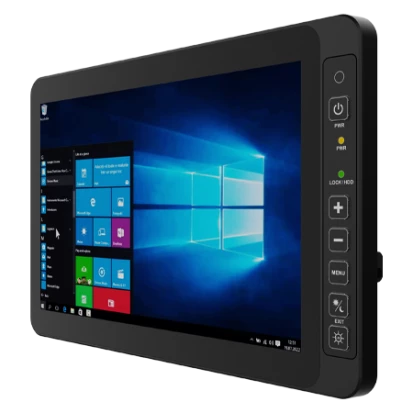

10.1" Fanless Panel PC, G-WIN Series, Full IP67, 1280x800, 350cd/m2 (HB Opt.), PCAP Touch, Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB SATA SSD, 3xM12 Connectors: (COM, 2xUSB, DC-in), 1xGbE LAN Waterproof, 9-36VDC-in, -10..55C

Preis auf Anfrage

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Wall VESA 75

Schutzlevel Frontseite (Panel)

IP67

Schutzlevel Gehäuse

IP67

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

10.1 "

Maximale Auflösung

1280x800 Dots

Helligkeit

350 Cd/m2

Kontrastverhältnis

800~1

Touch Screen

Touch Screen Art

kapazitiv

CPU

CPU Generation/Familie

Elkhart Lake

Installierter Prozessor

Celeron N6211

Socket

FCBGA1493

Maximale CPU-Frequenz

2.6 GHz

Chipsatz

Chipsatz

Intel SoC

Speicher

Formfaktor

DDR4

Socket Typ

1xSODIMM

ECC

No

Standard Onboard Speicher

4 GB

Maximum Speicher

16 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor

Ethernet

Ethernet gesamt

1

10/100/1000 Mbit/s

1

Schnittstellen Seriell / Parallel

COM gesamt

1

RS-232

1

USB gesamt

2

USB 2.0

2

Schnittstelle

M.2

1

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher-Formfaktor

M.2

Massenspeicher-Schnittstelle

SATA

Massenspeicher 1. Kapazität

128 GB

Steckplätze

Gesamtanzahl

1

M.2

1

M.2 Formfaktor

2242 M

Schnittstellen

Schnittstellen

M12, M12 USB, M12 DC-in, M12 LAN

Stromversorgung

Eingangsspannung DC

9..36 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Ubuntu, Windows 10 IoT Enterprise, Windows 11

Maße und Gewicht

Breite

264.6 mm

Höhe

173.3 mm

Tiefe

40.2 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-10..55 °C

Luftfeuchtigkeit

10-90%

Vibration

MIL-STD-810G Method 514.6 Procedure I

Schock

MIL-STD-810G Method 516.6 Procedure I

Normen und Zertifikate

Zertifizierungen

CE/FCC

MIL-STD-810

MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock

Maße

Bruttogewicht

1.9 kg

Nettogewicht

1.5 kg

Dokumente

W10IE3A-67H2-P-Datasheet.pdf
