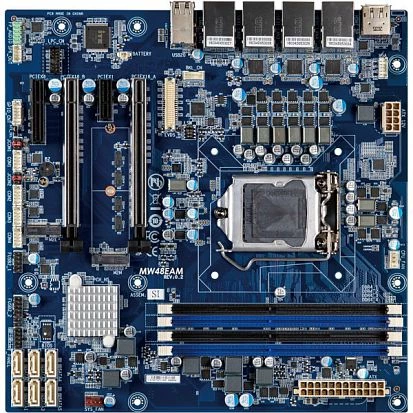

uATX-W48EA

uATX-W48EA

GIGAIPC
ART. NR.:: 57395300
Micro-ATX Mainboard Intel Gen11/10th Xeon W-1200 series/i3/Pentium/Celeron, Up to 128GB DDR4, 4xGbE LAN, 1xHDMI, 1xDP, 1xVGA, 1xLVDS, 2xPCIe x8, 1xPCIe x4, 1xPCIe x1, 1xM.2 2230 E-Key, 1xM.2 2280/2242 M-Key, 16xUSB, 4xCOM, GPIO, 0..60 C, 12V DC
Preis auf Anfrage
Verfügbar
Verfügbar

Systemarchitektur
Formfaktor
Micro ATX
CPU
CPU Generation/Familie
Comet Lake, Rocket Lake-S
CPU-Support-Typ
Core i3, Celeron, Pentium, Xeon
Socket
LGA1200
Chipsatz
Chipsatz
Intel W480E
Speicher
Formfaktor
DDR4
Socket Typ
4xDIMM
Maximum Speicher
128 GB
Grafik
Grafikcontroller
Intel Iris Xe Graphics
Schnitstellen
DisplayPort, LVDS, HDMI
Ethernet
Controller Typ
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Ethernet gesamt
4
10/100/1000 Mbit/s
4
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-232/422/485
1
USB gesamt
16
USB 2.0
8
USB v3.x
8
Audio
Audio Controller
Realtek HD Audio Codec
Schnittstelle
RAID Levels
1, 5, 10
Steckplätze
Gesamtanzahl
6
PCI Express x8
2
PCI Express x4
1
PCI Express x1
1
M.2
2
Schnittstellen
Intern
4xCOM, 4xUSB 2.0, 24-pin ATX, GPIO, 8-pin ATX
Schnittstellen
24-pin ATX, 4xDB9, DB15 VGA, HDMI, 4xRJ45, 4xUSB, 12xUSB, Display port, DB15 GPIO, 8-pin ATX
Software
Betriebssystemkompatibilität
Windows 10
Maße und Gewicht
Breite
244 mm
Länge
244 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Maße
Bruttogewicht
0.75 kg
Nettogewicht
0.75 kg
Systemarchitektur
Formfaktor
Micro ATX
CPU
CPU Generation/Familie
Comet Lake, Rocket Lake-S
CPU-Support-Typ
Core i3, Celeron, Pentium, Xeon
Socket
LGA1200
Chipsatz
Chipsatz
Intel W480E
Speicher
Formfaktor
DDR4
Socket Typ
4xDIMM
Maximum Speicher
128 GB
Grafik
Grafikcontroller
Intel Iris Xe Graphics
Schnitstellen
DisplayPort, LVDS, HDMI
Ethernet
Controller Typ
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Ethernet gesamt
4
10/100/1000 Mbit/s
4
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-232/422/485
1
USB gesamt
16
USB 2.0
8
USB v3.x
8
Audio
Audio Controller
Realtek HD Audio Codec
Schnittstelle
RAID Levels
1, 5, 10
Steckplätze
Gesamtanzahl
6
PCI Express x8
2
PCI Express x4
1
PCI Express x1
1
M.2
2
Schnittstellen
Intern
4xCOM, 4xUSB 2.0, 24-pin ATX, GPIO, 8-pin ATX
Schnittstellen
24-pin ATX, 4xDB9, DB15 VGA, HDMI, 4xRJ45, 4xUSB, 12xUSB, Display port, DB15 GPIO, 8-pin ATX
Software
Betriebssystemkompatibilität
Windows 10
Maße und Gewicht
Breite
244 mm
Länge
244 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Maße
Bruttogewicht
0.75 kg
Nettogewicht
0.75 kg
Systemarchitektur
Formfaktor
Micro ATX
CPU
CPU Generation/Familie
Comet Lake, Rocket Lake-S
CPU-Support-Typ
Core i3, Celeron, Pentium, Xeon
Socket
LGA1200
Chipsatz
Chipsatz
Intel W480E
Speicher
Formfaktor
DDR4
Socket Typ
4xDIMM
Maximum Speicher
128 GB
Grafik
Grafikcontroller
Intel Iris Xe Graphics
Schnitstellen
DisplayPort, LVDS, HDMI
Ethernet
Controller Typ
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Ethernet gesamt
4
10/100/1000 Mbit/s
4
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-232/422/485
1
USB gesamt
16
USB 2.0
8
USB v3.x
8
Audio
Audio Controller
Realtek HD Audio Codec
Schnittstelle
RAID Levels
1, 5, 10
Steckplätze
Gesamtanzahl
6
PCI Express x8
2
PCI Express x4
1
PCI Express x1
1
M.2
2
Schnittstellen
Intern
4xCOM, 4xUSB 2.0, 24-pin ATX, GPIO, 8-pin ATX
Schnittstellen
24-pin ATX, 4xDB9, DB15 VGA, HDMI, 4xRJ45, 4xUSB, 12xUSB, Display port, DB15 GPIO, 8-pin ATX
Software
Betriebssystemkompatibilität
Windows 10
Maße und Gewicht
Breite
244 mm
Länge
244 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Maße
Bruttogewicht
0.75 kg
Nettogewicht
0.75 kg
Systemarchitektur
Formfaktor
Micro ATX
CPU
CPU Generation/Familie
Comet Lake, Rocket Lake-S
CPU-Support-Typ
Core i3, Celeron, Pentium, Xeon
Socket
LGA1200
Chipsatz
Chipsatz
Intel W480E
Speicher
Formfaktor
DDR4
Socket Typ
4xDIMM
Maximum Speicher
128 GB
Grafik
Grafikcontroller
Intel Iris Xe Graphics
Schnitstellen
DisplayPort, LVDS, HDMI
Ethernet
Controller Typ
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Ethernet gesamt
4
10/100/1000 Mbit/s
4
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-232/422/485
1
USB gesamt
16
USB 2.0
8
USB v3.x
8
Audio
Audio Controller
Realtek HD Audio Codec
Schnittstelle
RAID Levels
1, 5, 10
Steckplätze
Gesamtanzahl
6
PCI Express x8
2
PCI Express x4
1
PCI Express x1
1
M.2
2
Schnittstellen
Intern
4xCOM, 4xUSB 2.0, 24-pin ATX, GPIO, 8-pin ATX
Schnittstellen
24-pin ATX, 4xDB9, DB15 VGA, HDMI, 4xRJ45, 4xUSB, 12xUSB, Display port, DB15 GPIO, 8-pin ATX
Software
Betriebssystemkompatibilität
Windows 10
Maße und Gewicht
Breite
244 mm
Länge
244 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Maße
Bruttogewicht
0.75 kg
Nettogewicht
0.75 kg

Dokumente
Datasheet_uATX_W48EA__39769754.pdf uATX_W48EA_User_Manual__39996401.pdf
Dokumente
Datasheet_uATX_W48EA__39769754.pdf uATX_W48EA_User_Manual__39996401.pdf
Dokumente
Datasheet_uATX_W48EA__39769754.pdf uATX_W48EA_User_Manual__39996401.pdf
Dokumente
Datasheet_uATX_W48EA__39769754.pdf uATX_W48EA_User_Manual__39996401.pdf
