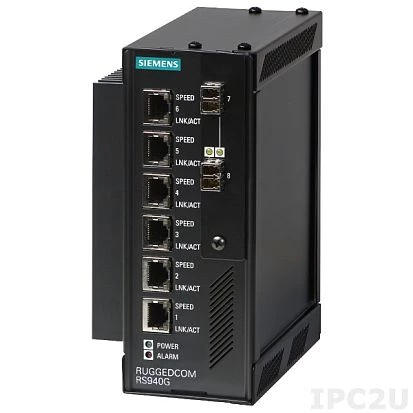

RUGGEDCOM-RS940G

Siemens AG
ART. NR.:: 56128500
RUGGEDCOM RS940G Industrial Managed Ethernet Layer 2 Switch, IP40, 6x10/100/1000 Base-TX ports, optional 2x10/100/1000 Base-X ports, 128-bit Encryption, 24/48 VDC or 88..300 VDC / 85..264 VAC , Wide Temp. -40..85C
Preis auf Anfrage
Verfügbar
Verfügbar
Ethernet
Ethernet gesamt
6
10/100/1000 Mbit/s
6
Typ 10/100/1000 Mbit/s
6xRJ-45
Switch Properties
Managed
Yes
Switch Level
Layer 2
Netzwerk
Steuerungsprotokolle
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, SNTP, RMON, TFTP, IGMP, DHCP Client
Sicherheitsprotokolle
SSH, SSL, TACACS+, IEEE 802.1X Network Access Control
IEEE Norm
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Ausgang
Gesamtanzahl
1
Systemleistung
Eingangsspannung DC
18..36 V
Aufbau
Gehäuse
Gehärteter Stahl
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP40
Maße und Gewicht
Breite
66 mm
Tiefe
127 mm
Höhe
188 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..85 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
Automatisierung
IEC 61850-3
Internetsicherheit
EN 60950, UL, CSA
Maße
Bruttogewicht
1.2 kg
Nettogewicht
0.92 kg
