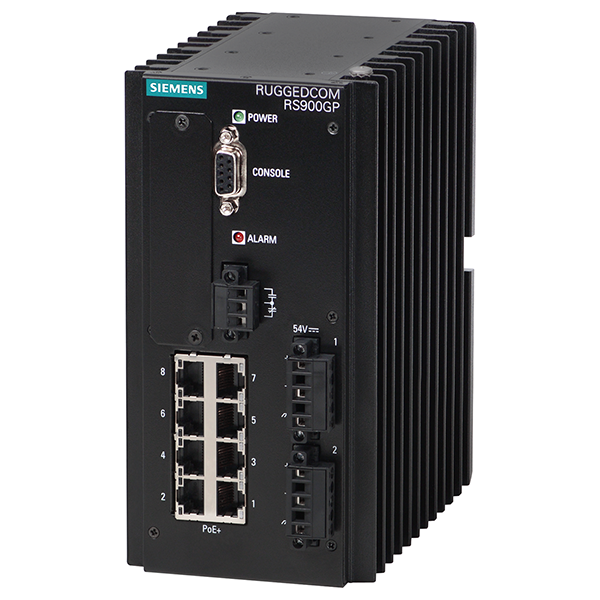

RUGGEDCOM-RS900GP-M

Name:

Siemens AG

RS-232:

1

10/100/1000 Mbit/s:

8

SFP Gigabit Ethernet 100/1000 Mbit/s:

2

Netzwerkprotokoll:

DHCP Option 66/67/82, SNTP, SNMPv1/v2c/v3, HTTP, HTTPS, LLDP, SSH, TFTP, TACACS+, STP/RSTP, DHCP Client, SSL, MSTP, SNTP Client, IGMP Snooping v1/v2/v3, IGMP Querier, SFTP

IEEE Norm:

IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

MAC Table Size:

32000

Max. Number of VLANs:

255

IGMP Groups:

256

Eingangsspannung DC:

45 ... 57 V

Temperatur:

-40 ... 85 °C

Einbaumöglichkeit:

DIN-Rail mount

Schutzlevel Gehäuse:

IP40

Breite:

90 mm

Höhe:

176.53 mm

Tiefe:

154.43 mm

Vibration und Schock:

IEC 61850-3

EMI:

EN 55022, FCC Part 15 Subpart B Class A
