RS752

WoMaster
ART. NR.:: 57638300

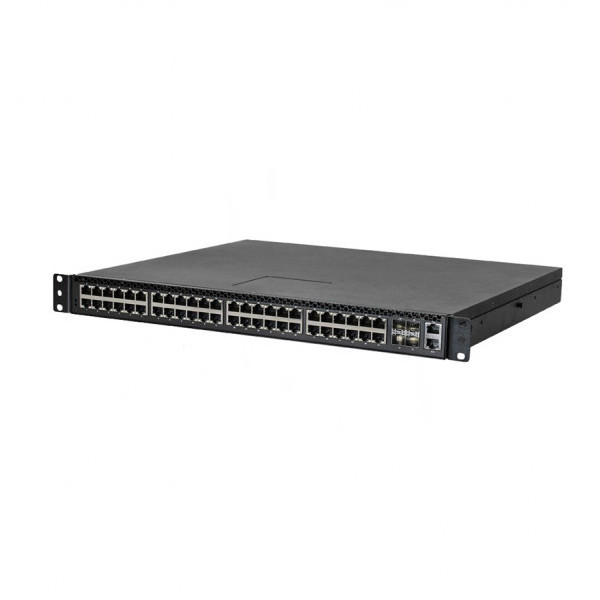

Industrial Rackmount Ethernet Switch, 48x10/100/1000Base-T, 2x1/10G SFP+, 1xDB9, L3 Managed, L2 Managed, VRRP v2, ERPS v2, 100..240VAC, -10..55 C
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
10/100/1000 Mbit/s
48
Schnittstellen Seriell / Parallel
RS-232
1
Switch Properties
MAC Table Size
32000
Packet Buffer Size
4 kBit
Jumbo Frame Size
12 kB
Max. Number of VLANs
4000
Netzwerk
Protokoll Layer 3
VRRP, RIP V1/V2, OSPF, DVMRP
IEEE Norm
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
19" Rackmount
Höhe
1 U
Maße und Gewicht
Breite
435 mm
Tiefe
393 mm
Höhe
42.8 mm
Normen und Zertifikate
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
9.4 kg
Nettogewicht
7.15 kg
Ethernet
10/100/1000 Mbit/s
48
Schnittstellen Seriell / Parallel
RS-232
1
Switch Properties
MAC Table Size
32000
Packet Buffer Size
4 kBit
Jumbo Frame Size
12 kB
Max. Number of VLANs
4000
Netzwerk
Protokoll Layer 3
VRRP, RIP V1/V2, OSPF, DVMRP
IEEE Norm
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
19" Rackmount
Höhe
1 U
Maße und Gewicht
Breite
435 mm
Tiefe
393 mm
Höhe
42.8 mm
Normen und Zertifikate
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
9.4 kg
Nettogewicht
7.15 kg
Ethernet
10/100/1000 Mbit/s
48
Schnittstellen Seriell / Parallel
RS-232
1
Switch Properties
MAC Table Size
32000
Packet Buffer Size
4 kBit
Jumbo Frame Size
12 kB
Max. Number of VLANs
4000
Netzwerk
Protokoll Layer 3
VRRP, RIP V1/V2, OSPF, DVMRP
IEEE Norm
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
19" Rackmount
Höhe
1 U
Maße und Gewicht
Breite
435 mm
Tiefe
393 mm
Höhe
42.8 mm
Normen und Zertifikate
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
9.4 kg
Nettogewicht
7.15 kg
Ethernet
10/100/1000 Mbit/s
48
Schnittstellen Seriell / Parallel
RS-232
1
Switch Properties
MAC Table Size
32000
Packet Buffer Size
4 kBit
Jumbo Frame Size
12 kB
Max. Number of VLANs
4000
Netzwerk
Protokoll Layer 3
VRRP, RIP V1/V2, OSPF, DVMRP
IEEE Norm
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
19" Rackmount
Höhe
1 U
Maße und Gewicht
Breite
435 mm
Tiefe
393 mm
Höhe
42.8 mm
Normen und Zertifikate
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
9.4 kg
Nettogewicht
7.15 kg

Dokumente
RS752-Datasheet.pdf
Dokumente
RS752-Datasheet.pdf
Dokumente
RS752-Datasheet.pdf
Dokumente
RS752-Datasheet.pdf
