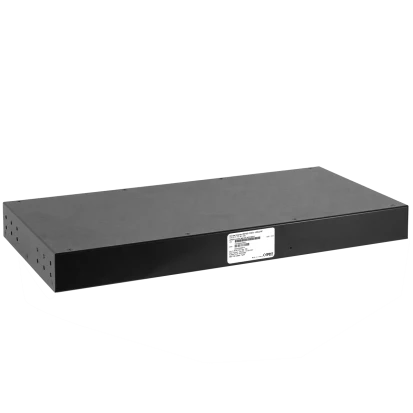

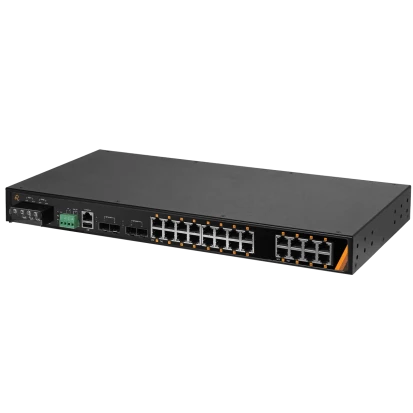

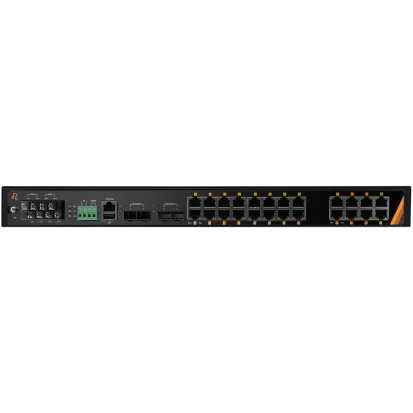

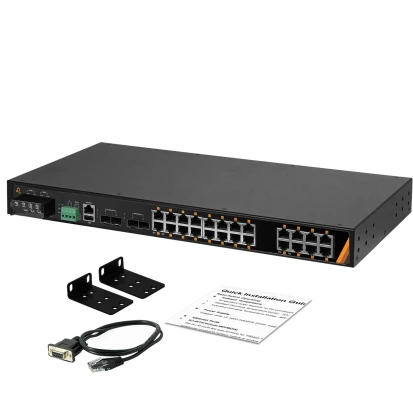

RPG5-2804-10GSFP

RPG5-2804-10GSFP

ART. NR.:: 80026600

Industrial Rack-Mount Managed Gigabit Ethernet PoE+ Switch, IP30, 24x10/100/1000Base-T with PoE, 4x1G/2.5G/10GbE SFP+, 1xCOM, Dual 48..55VDC, Operating Temperature -10..65 C

Preis auf Anfrage

Ethernet

Ethernet gesamt

24

10/100/1000 Mbit/s

24

10 Gbit SFP+ Ports

4

PoE 10/100/1000 Mbit/s

24

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

10 kB

Max. Number of VLANs

4095

IGMP Groups

1024

Netzwerk

Steuerungsprotokolle

DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, GVRP, RMON, IGMP Snooping v1/v2/v3, GARP

Reservierungs-Protokolle

MSTP, STP, RSTP

Sicherheitsprotokolle

HTTPS, SSH, RADIUS, TACACS+

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)

Systemleistung

Eingangsspannung DC

48..55 V

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

19" Rackmount

Schutzlevel Gehäuse

IP30

Maße und Gewicht

Breite

440 mm

Tiefe

44 mm

Höhe

215 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-10..65 °C

Luftfeuchtigkeit

5-95%

Maße

Bruttogewicht

1.2 kg

Nettogewicht

0.62 kg
