R19IAD3S-MRM2FP

R19IAD3S-MRM2FP

Winmate
ART. NR.:: 80125400

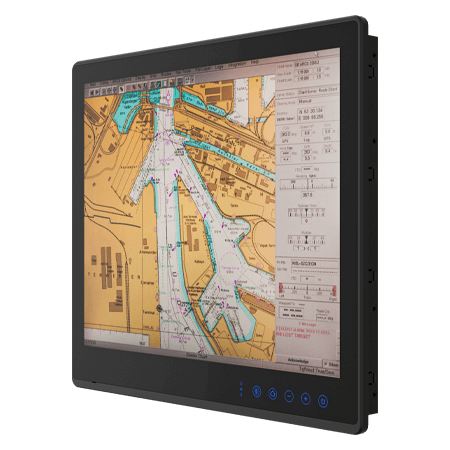

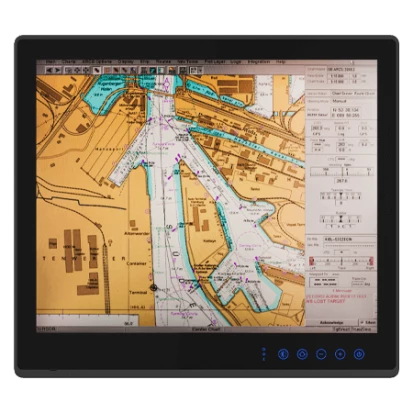

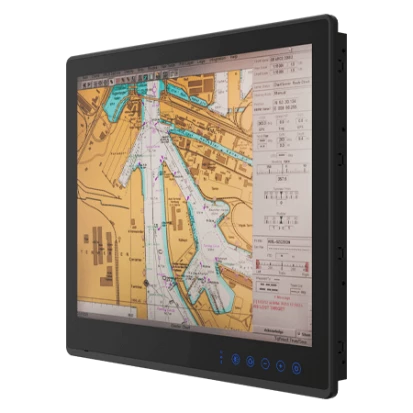

19" Fanless Marin ECDIS Panel PC, IP66 Front, 1280x1024, 350 cd/m2, AR Coating, PCAP Touch, Intel Core i5-1335U CPU, 8GB DDR5 RAM, 128GB NVME SSD, HDMI Opt., 2xGbE LAN, 2xUSB 3.2, 1xUSB 2.0, 1xCOM, 4xNEMA Opt., DIO Opt., 9-36VDC-in with PSU
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Panel, Wall VESA 100
Schutzlevel Frontseite (Panel)
IP66
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
19 "
Maximale Auflösung
1280x1024 Dots
Helligkeit
350 Cd/m2
Kontrastverhältnis
2000~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Raptor Lake
Installierter Prozessor
Intel Core i5-1335U
Socket
FCBGA1744
Maximale CPU-Frequenz
4.6 GHz
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR5
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
8 GB
Maximum Speicher
32 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-232/422/485
1
USB gesamt
3
USB 2.0
1
USB v3.x
2
Digital Eingang / Ausgang
Gesamtanzahl
8
Schnittstelle
M.2
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
M.2
Massenspeicher-Schnittstelle
PCIe x4
Massenspeicher 1. Kapazität
128 GB
Steckplätze
Gesamtanzahl
1
M.2
1
M.2 Formfaktor
2280 M
Status LEDs / Schalter
Schalter
On/Off, Kontrolltasten
Schnittstellen
Schnittstellen
DB9, HDMI, 2xRJ45 Ethernet, 3xUSB, DC input (terminal block)
Stromversorgung
Eingangsspannung DC
9..36 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Maße und Gewicht
Breite
429 mm
Höhe
382 mm
Tiefe
72.8 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-15..55 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
Marine Standard
DNV
Maße
Bruttogewicht
8.6 kg
Nettogewicht
7.8 kg

Dokumente
R19IAD3S-MRM2FP-Datasheet.pdf

Produktanfrage

Winmate
ART. NR.:: 80125400
R19IAD3S-MRM2FP
R19IAD3S-MRM2FP
R19IAD3S-MRM2FP
