R15IH3S-MRA3FP

R15IH3S-MRA3FP

Winmate
ART. NR.:: 56637300

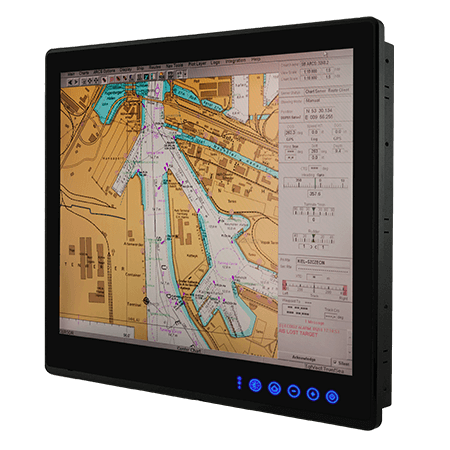

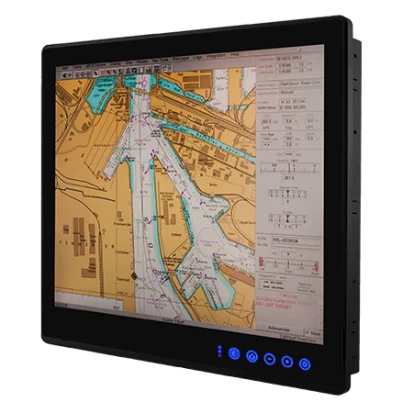

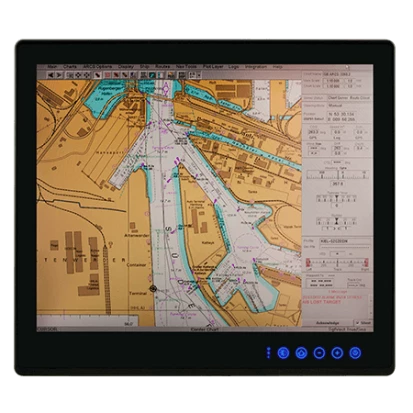

15" Fanless Marin ECDIS Panel PC, IP66 Front, DNV/IACS Certified, 1024x768, 500 cd/m2, AR Coating, PCAP Touch, Intel Core i5-5250U CPU, 4GB DDR3L RAM, 128GB mSATA SSD, HDMI Opt., 2xGbE LAN, 2xUSB 3.2, 1xCOM, 4xNEMA Opt., DIO Opt., 9-36VDC-in with PSU
Abgekündigt

Aufbau
Gehäuse
Metallgehäuse mit Aluminium-Kühlkörper
Einbaumöglichkeit
Panel, Wall VESA 100
Schutzlevel Frontseite (Panel)
IP66
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
15 "
Maximale Auflösung
1024x768 Dots
Helligkeit
500 Cd/m2
Kontrastverhältnis
2500~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Broadwell
Installierter Prozessor
Intel Core i5-5350U
Socket
FCBGA1168
Maximale CPU-Frequenz
2.9 GHz
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
Standard Onboard Speicher
4 GB
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i211-AT 10/100/1000 Mbps, Intel i218-LM 10/100/1000 Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-232/422/485
1
USB gesamt
2
USB v3.x
2
Digital Eingang / Ausgang
GPIO
4xDigital In / 4xDigital Out
Schnittstelle
mSATA
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
mSATA
Massenspeicher-Schnittstelle
SATA
Massenspeicher 1. Kapazität
128 GB
Steckplätze
Gesamtanzahl
1
Mini-PCIe/Mini Card
1
Status LEDs / Schalter
Schalter
On/Off, Kontrolltasten
Schnittstellen
Schnittstellen
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
Stromversorgung
Eingangsspannung DC
9..36 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Ubuntu, Windows 10 IoT Enterprise, Windows 10
Maße und Gewicht
Breite
363 mm
Höhe
312 mm
Tiefe
67.5 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-15..55 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
Marine Standard
DNV, IACS-E10, IEC 60945 4th
Maße
Bruttogewicht
6.6 kg
Nettogewicht
5.8 kg

Dokumente
R15IH3S-MRA3FP-Datasheet.pdf
