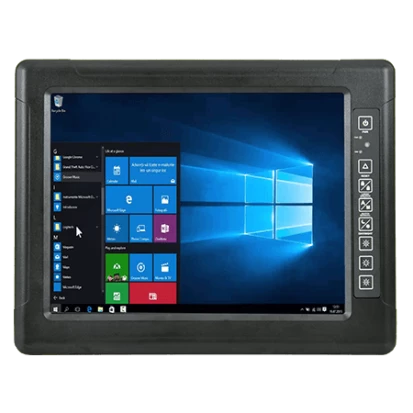

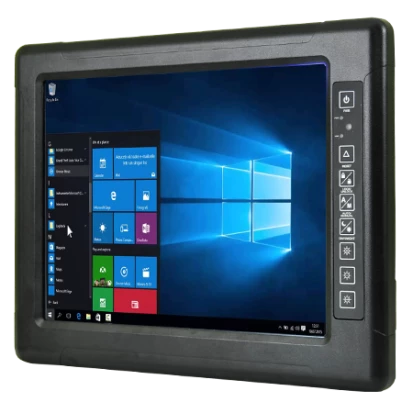

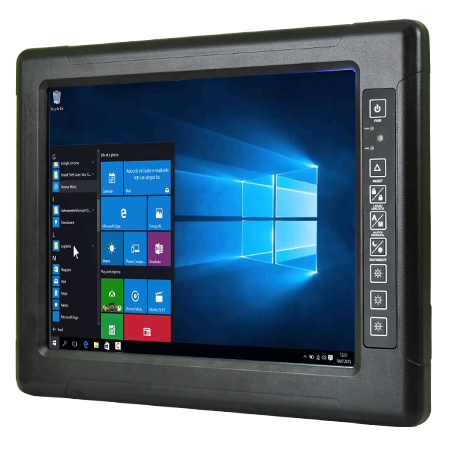

R15IB3S-67C3

R15IB3S-67C3

Winmate
ART. NR.:: 57132400
15" Fanless Panel PC, G-WIN Series, Full IP67, 1024x768, 350cd/m2 (HB Opt.), Resistive Touch, Intel Celeron N2930 1.83GHz CPU, 4GB DDR3L RAM, 128GB mSATA SSD, 3xM12 Connectors: (COM, 2xUSB, DC-in), 1xGbE LAN Waterproof, 9-36VDC-in, -10..55C
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall VESA 100, Yoke mounting
Schutzlevel Frontseite (Panel)
IP67
Schutzlevel Gehäuse
IP67
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
15 "
Maximale Auflösung
1024x768 Dots
Helligkeit
350 Cd/m2
Kontrastverhältnis
2000~1
Touch Screen
Touch Screen Art
resistiv
CPU
CPU Generation/Familie
Bay Trail
Installierter Prozessor
Intel Celeron N2930
Socket
FCBGA1170
Maximale CPU-Frequenz
2.16 GHz
Chipsatz
Chipsatz
Intel Bay Trail-I SoC
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
4 GB
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Ethernet gesamt
1
10/100/1000 Mbit/s
1
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-232
1
USB gesamt
2
USB 2.0
2
Schnittstelle
mSATA
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
mSATA
Massenspeicher-Schnittstelle
SATA
Massenspeicher 1. Kapazität
128 GB
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off
Schnittstellen
Schnittstellen
M12, M12 USB, M12 DC-in, M12 LAN
Stromversorgung
Eingangsspannung DC
9..36 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Ubuntu, Windows 10 IoT Enterprise
Maße und Gewicht
Breite
398 mm
Höhe
308 mm
Tiefe
58 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..55 °C
Luftfeuchtigkeit
10-90%
Normen und Zertifikate
Zertifizierungen
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Maße
Bruttogewicht
4.6 kg
Nettogewicht
3.8 kg

Dokumente
R15IB3S-67C3-Datasheet.pdf
