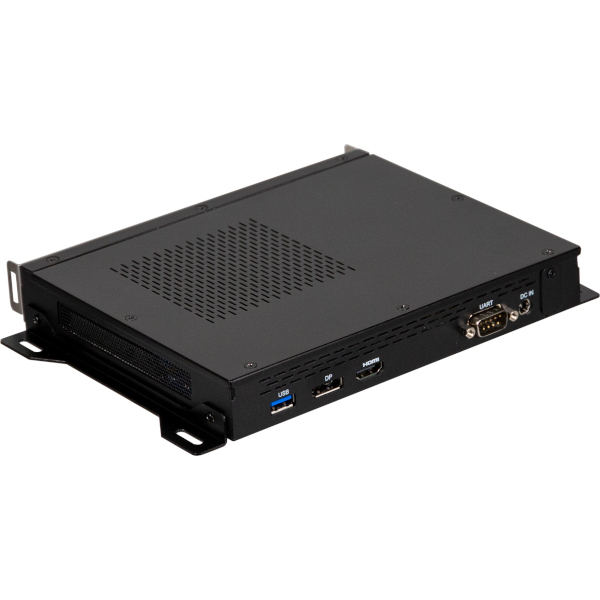

QBiX-Lite-SDM-1135G7L

QBiX-Lite-SDM-1135G7L

GIGAIPC
ART. NR.:: 57411200
Media Display System w/ Intel SDM, SDM-1135G7L Module, Intel Core i5-1135G7 CPU, 2xSO-DIMM DDR4 up to 64GB RAM, 3xHDMI, DP, 1xGbE, 3xUSB3.2, 1xUSB2.0, 2xM.2, Audio, 0..55 operating temp.
Preis auf Anfrage
Verfügbar
Verfügbar

CPU
CPU Generation/Familie
Tiger Lake
Installierter Prozessor
Intel Core i5-1135G7
Socket
FCBGA 1449
Maximale CPU-Frequenz
4.2 GHz
Speicher
Formfaktor
DDR4
Maximum Speicher
64 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
Intel Iris Xe Graphics
Ethernet
Controller Typ
Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
1
Schnittstellen Seriell / Parallel
COM gesamt
4
USB 2.0
1
USB v3.x
3
Steckplätze
Gesamtanzahl
2
M.2
2
Schnittstellen
Schnittstellen
2xHDMI, RJ45, 4xUSB
Software
Betriebssystemkompatibilität
Windows 10
Maße und Gewicht
Breite
175 mm
Tiefe
100 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..55 °C
Maße
Bruttogewicht
3 kg
