PPC-120T-BT-01

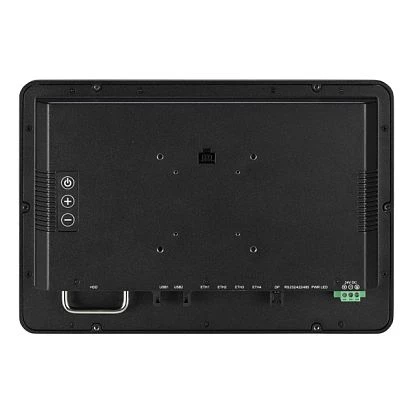

PPC-120T-BT-01

NEXCOM
ART. NR.:: 56388200
Marine Fanless Panel PC 12" TFT LCD, projected capacitive touch, Intel Atom E3845 1.91GHz CPU, 4GB DDR3L, 128GB M.2 SATA, 1xCOM, 4xLAN, 2xUSB, 1xMiniDisplay, power supply 24V DC, -25 to 70C Operating Temperature
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Einbaumöglichkeit
Wall VESA 75
Schutzlevel Frontseite (Panel)
IP65
Schutzlevel Gehäuse
IP20
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
12 "
Maximale Auflösung
1280x800 Dots
Seitenverhältnis
16:9
Helligkeit
500 Cd/m2
Kontrastverhältnis
1000~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
Installierter Prozessor
Intel Atom E3845
Maximale CPU-Frequenz
1.91 GHz
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
4 GB
Ethernet
Controller Typ
Intel i210-IT
Ethernet gesamt
4
10/100/1000 Mbit/s
4
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-232/422/485
1
USB gesamt
4
USB 2.0
2
USB v3.x
1
Schnittstelle
M.2
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
M.2
Massenspeicher 1. Kapazität
128 GB
Schnittstellen
Schnittstellen
4xRJ45 Ethernet, 2xUSB, Display port
Stromversorgung
Eingangsspannung DC
24..24 V
Betriebsbedingungen
Maximale Betriebstemperatur
-25..70 °C
Vibration
1.15Grms @ random condition, 1~200Hz, 1.5hr/axis (operating/non-operating)
Schock
- IEC 68 2-27 - 20G @ wall mount, half sine, 11ms
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A, IEC 60945
Maße
Bruttogewicht
11.5 kg
Nettogewicht
9.5 kg

Dokumente
Datasheet_PPC_120T_BT_01__31681272.pdf PPC-080T-BT-01-User-Manual.pdf
