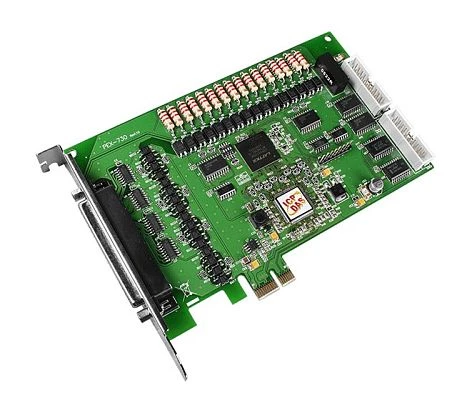

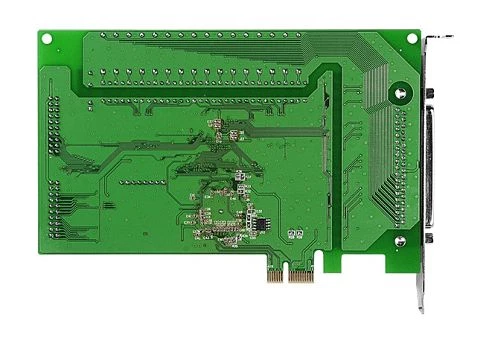

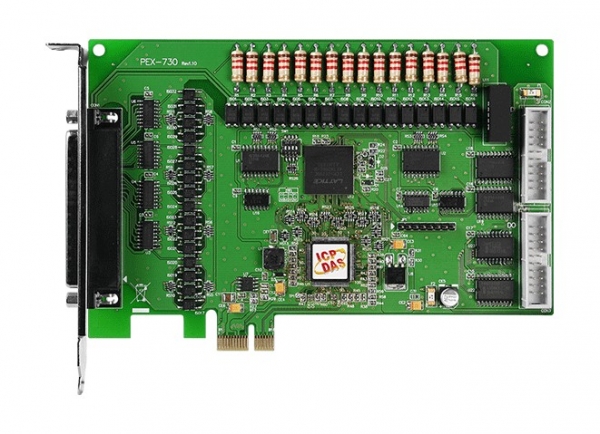

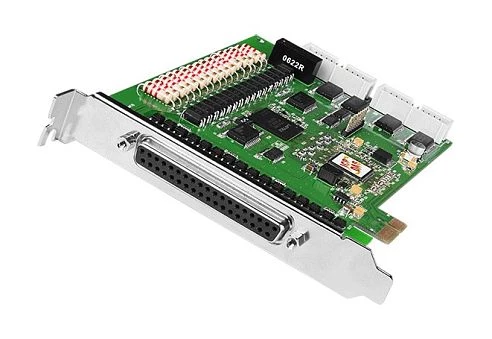

PEX-730

PCI Express x 1 Isolated 16DI, 16DO, Non-Isolated TTL 16DI, 16DO Card

Preis auf Anfrage ()
Stk.
Bestellen
Zu den Favoriten hinzufügen Aus den Favoriten entfernen
Auf die Vergleichs Vergleichen
Hersteller:
ICP DAS
Systembus:
PCI-Express x1
Gesamtanzahl:
32
Gesamtanzahl:
32
Spezifikationen
Hersteller
Name:
ICP DAS
Systemarchitektur
Systembus:
PCI-Express x1
Digital Eingang
Gesamtanzahl:
32 (16 isolated and 16 non-isolated)
digitale "1" Wet Contact:
9 ... 24 V (2 - 5 V Non-isolated)
digitale "0" Wet Contact:
0 ... 1 V (0 - 0.8 V Non-isolated)
Isolierter Digital-Eingang:
3750 V
Digital Ausgang
Gesamtanzahl:
32 (16 isolated and 16 non-isolated)
Ausgangsspannung:
0 ... 30 V (5 V Non-isolated)
Max. Ausgangsstrom:
100 mA (0.8 mA Non-isolated)
Isolierter Digital-Ausgang:
3750 V
Schnittstellen
Intern:
2x20-pin box header
Schnittstellen:
DB37 Female
Software
Betriebssystemkompatibilität:
Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Entwicklung Software:
VC, VB, Delphi, BCB, LabVIEW
Betriebsbedingungen
Temperatur:
0 ... 60 °C
Feuchtigkeit:
5 ... 85 % (non-condensing)
Lagerbedingungen
Temperaturbereich:
-20 ... 70 °C
Maße und Gewicht
Breite:
22 mm
Höhe:
116 mm
Tiefe:
163 mm

Größe

Gewicht

Bruttogewicht: 0.75 kg
Nettogewicht: 0.13 kg
