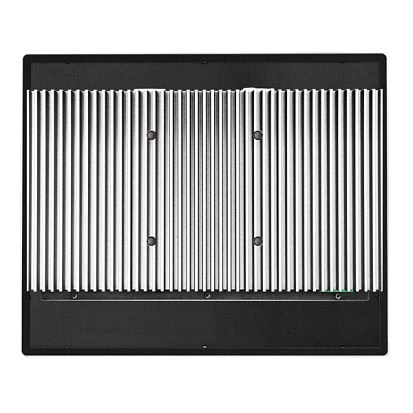

LPC-P104S-3X

10.4" TFT LCD Fanless Panel PC P-cap 3X Series, 1024x768, 350 cd/m2, IP65/66 Front, PCAP touch, Variants with i3/i5/i7 6th/7th Gen. CPU, max. 16GB RAM, 4xUSB, 2xLAN, DP, HDMI, 3xCOM, 9-36 VDC-in with power adapter, -30..+70 temp., IEC-60945 Certified

Preis auf Anfrage * - Mit der gewählten Konfiguration ()
Stk.
Bestellen
Zu den Favoriten hinzufügen Aus den Favoriten entfernen
Auf die Vergleichs Vergleichen
Hersteller:
ELGENS
Gehäuse:
Aluminiumgehäuse
Schutzlevel Frontseite (Panel):
IP66
Schutzlevel Gehäuse:
IP65
Bildschirmtyp:
LCD TFT
Diagonale:
10.4 "
Maximale Auflösung:
1024 x 768 Dots
Touch Screen Art:
kapazitiv
Unterstützte Prozessoren:
Intel Core i3, Intel Core i5, Intel Core i7
Spezifikationen
Aufbau
Gehäuse:
Aluminiumgehäuse
Einbaumöglichkeit:
Panel, Wall VESA 75
Schutzlevel Frontseite (Panel):
IP66
Schutzlevel Gehäuse:
IP65
Display
Bildschirmtyp:
LCD TFT
Diagonale:
10.4 "
Maximale Auflösung:
1024 x 768 Dots
Helligkeit:
350 Nt
Touch Screen
Touch Screen Art:
kapazitiv
CPU
CPU Generation/Familie:
Skylake, Kaby Lake
Unterstützte Prozessoren:
Intel Core i3, Intel Core i5, Intel Core i7
Installierter Prozessor:
Intel Core i7-6600U, Intel Core i3-6100U, Intel Core i5-6300U, Intel Core i5-7300U
Speicher
Speichertyp:
DDR4 2133
Maximum Speicher:
16 GB
Speichermedium
mSATA Unterstützung:
Yes
CFast Socket:
Yes
Schnittstellen Seriell / Parallel
COM gesamt:
3
RS-232:
2
RS-232/422/485:
1
USB 3.0:
4
Netzwerk Adapter
Ethernet gesamt:
2
Steckplätze
Mini-PCIe/Mini Card:
2
Schnittstellen
Schnittstellen:
HDMI, 4xUSB, Audio, Display port
Systemleistung
Eingangsspannung DC:
9 ... 36 V
Netzteil
Art der Spannungsversorgung:
External power adapter AC/DC
Software
Betriebssystemkompatibilität:
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Betriebsbedingungen
Temperatur:
-20 ... 60 °C
Feuchtigkeit:
10 ... 90 %
Vibration:
1.5 Grms @10~500Hz, IEC-60068-2-64
Maße und Gewicht
Breite:
259.5 mm
Höhe:
215.9 mm
Tiefe:
72.1 mm
Normen und Zertifikate
Zertifizierungen:
CE, FCC Class A, FCC Class B
Hersteller
Name:
ELGENS
Optionen

Konfiguration

{{option[key].COUNT}}
{{option[key].name}} {{option[key].name}}
Preis auf Anfrage ()
System Barebone Einzelpreis Gesamtpreis
nicht installiert
10.4" TFT LCD Fanless Panel PC P-cap 3X Series, 1024x768, 350 cd/m2, IP65/66 Front, PCAP touch, Intel Core i3-6100U CPU, max. 16GB RAM, 4xUSB, 2xLAN, DP, HDMI, 3xCOM, 9-36 VDC-in with power adapter, -30..+70 temp., IEC-60945 Certified, DNV Compliant
10.4" TFT LCD Fanless Panel PC P-cap 3X Series, 1024x768, 350 cd/m2, IP65/66 Front, PCAP touch, Intel Core i5-6300U CPU, max. 16GB RAM, 4xUSB, 2xLAN, DP, HDMI, 3xCOM, 9-36 VDC-in with power adapter, -30..+70 temp., IEC-60945 Certified, DNV Compliant
10.4" TFT LCD Fanless Panel PC P-cap 3X Series, 1024x768, 350 cd/m2, IP65/66 Front, PCAP touch, Intel Core i7-6600U CPU, max. 16GB RAM, 4xUSB, 2xLAN, DP, HDMI, 3xCOM, 9-36 VDC-in with power adapter, -30..+70 temp., IEC-60945 Certified, DNV Compliant
Dokumentation

Größe

Gewicht

Bruttogewicht: 4 kg
Nettogewicht: 3 kg
