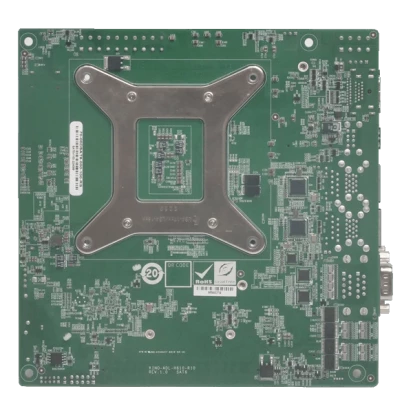

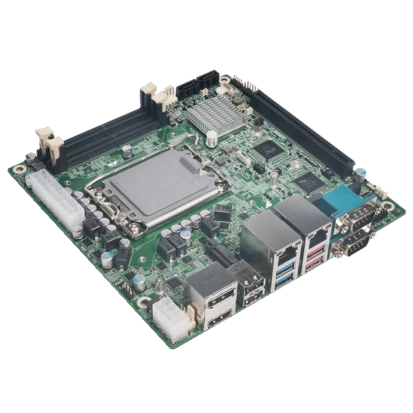

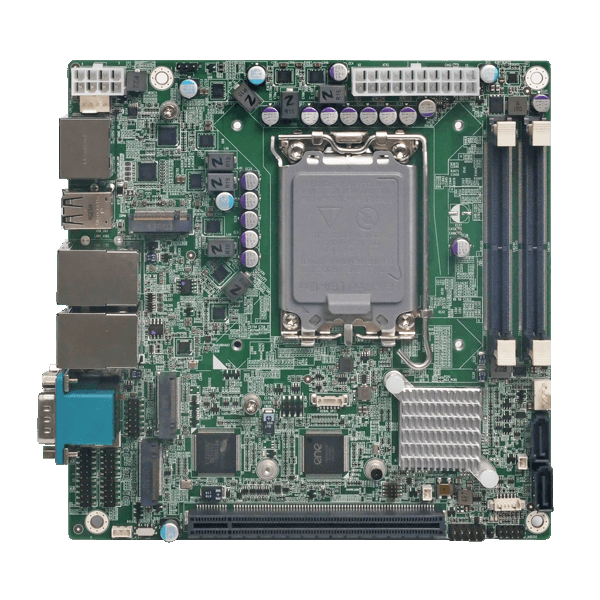

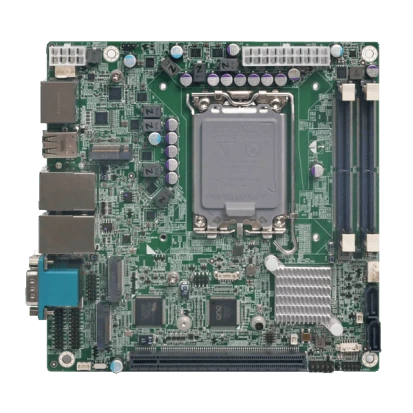

KINO-ADL-H610

KINO-ADL-H610

ART. NR.:: 09938900

Mini-ITX Motherboard, LGA1700, Intel 12/13/14th Gen Core i9/i7/i5/i3/Pentium/Celeron CPU, H610/610E Chipset, Up to 64GB DDR4 RAM, DP/HDMI/iDPM, 2x2.5GbE LAN, 4xUSB 3.2, 2xUSB 2.0, 2xUSB Int, 2xCOM, 4xCOM Int, 2xSATA, M.2 Key-M, M.2 Key-A, 1xPCIe x16

Preis auf Anfrage

Maße

Bruttogewicht

1.2 kg

Nettogewicht

0.7 kg

Dokumente

KINO-ADL-Datasheet.pdf

Produktanfrage

ART. NR.:: 09938900

KINO-ADL-H610

KINO-ADL-H610

KINO-ADL-H610

KINO-ADL-H610
