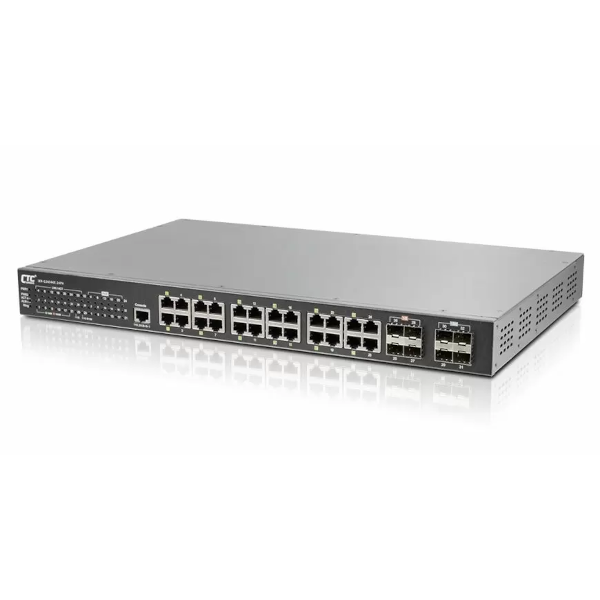

IXR-G24044X-24PH

ART. NR.:: 57975900

Industrial Layer 3 PoE Switch, IP30, 24x10/100/1000Base-T with PoE, 4x100/1000Base-X SFP, 4x1G/2.5G/10G SFP+, 1xCOM, Memory Buffer 4Mb, Device Memory 16Mb, Redundant Dual 44..57VDC, Operating Temperature -40..60 C

Preis auf Anfrage

Ethernet

Ethernet gesamt

10/100/1000 Mbit/s

SFP 100/1000 Mbit Ports

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Schnittstellen Seriell / Parallel

RS-232

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

10 kB

Netzwerk

Protokoll Layer 3

VRRP, RIP V1/V2, OSPF

Steuerungsprotokolle

DHCP Server/Client, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, VLAN, QoS, DHCP, NTP, GVRP, RMON, CoS, TCP, IGMP Snooping v1/v2/v3, DHCP Option 82

Sicherheitsprotokolle

HTTPS, RADIUS, SSL, TACACS+, SSH2

IEEE Norm

IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet

Systemleistung

Eingangsspannung DC

44..57 V

Aufbau

Einbaumöglichkeit

19" Rackmount

Schutzlevel Gehäuse

IP30

Maße und Gewicht

Breite

280 mm

Tiefe

440 mm

Höhe

44 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..60 °C

Luftfeuchtigkeit

5-95%

MTBF

97078 h

Normen und Zertifikate

Zertifizierungen

EMI

FCC Part 15 Subpart B Class A

EMS

EN 50121-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035

Sturz

IEC 60068-2-32

Vibration und Schock

IEC 60068-2-6, IEC 60068-2-27

Maße

Bruttogewicht

5.26 kg

Nettogewicht

4.26 kg

Ethernet

Ethernet gesamt

10/100/1000 Mbit/s

SFP 100/1000 Mbit Ports

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Schnittstellen Seriell / Parallel

RS-232

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

10 kB

Netzwerk

Protokoll Layer 3

VRRP, RIP V1/V2, OSPF

Steuerungsprotokolle

DHCP Server/Client, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, VLAN, QoS, DHCP, NTP, GVRP, RMON, CoS, TCP, IGMP Snooping v1/v2/v3, DHCP Option 82

Sicherheitsprotokolle

HTTPS, RADIUS, SSL, TACACS+, SSH2

IEEE Norm

Systemleistung

Eingangsspannung DC

44..57 V

Aufbau

Einbaumöglichkeit

19" Rackmount

Schutzlevel Gehäuse

IP30

Maße und Gewicht

Breite

280 mm

Tiefe

440 mm

Höhe

44 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..60 °C

Luftfeuchtigkeit

5-95%

MTBF

97078 h

Normen und Zertifikate

Zertifizierungen

EMI

FCC Part 15 Subpart B Class A

EMS

EN 50121-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035

Sturz

IEC 60068-2-32

Vibration und Schock

IEC 60068-2-6, IEC 60068-2-27

Maße

Bruttogewicht

5.26 kg

Nettogewicht

4.26 kg

Ethernet

Ethernet gesamt

10/100/1000 Mbit/s

SFP 100/1000 Mbit Ports

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Schnittstellen Seriell / Parallel

RS-232

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

10 kB

Netzwerk

Protokoll Layer 3

VRRP, RIP V1/V2, OSPF

Steuerungsprotokolle

DHCP Server/Client, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, VLAN, QoS, DHCP, NTP, GVRP, RMON, CoS, TCP, IGMP Snooping v1/v2/v3, DHCP Option 82

Sicherheitsprotokolle

HTTPS, RADIUS, SSL, TACACS+, SSH2

IEEE Norm

Systemleistung

Eingangsspannung DC

44..57 V

Aufbau

Einbaumöglichkeit

19" Rackmount

Schutzlevel Gehäuse

IP30

Maße und Gewicht

Breite

280 mm

Tiefe

440 mm

Höhe

44 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..60 °C

Luftfeuchtigkeit

5-95%

MTBF

97078 h

Normen und Zertifikate

Zertifizierungen

EMI

FCC Part 15 Subpart B Class A

EMS

EN 50121-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035

Sturz

IEC 60068-2-32

Vibration und Schock

IEC 60068-2-6, IEC 60068-2-27

Maße

Bruttogewicht

5.26 kg

Nettogewicht

4.26 kg

Ethernet

Ethernet gesamt

10/100/1000 Mbit/s

SFP 100/1000 Mbit Ports

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Schnittstellen Seriell / Parallel

RS-232

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

10 kB

Netzwerk

Protokoll Layer 3

VRRP, RIP V1/V2, OSPF

Steuerungsprotokolle

DHCP Server/Client, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, VLAN, QoS, DHCP, NTP, GVRP, RMON, CoS, TCP, IGMP Snooping v1/v2/v3, DHCP Option 82

Sicherheitsprotokolle

HTTPS, RADIUS, SSL, TACACS+, SSH2

IEEE Norm

Systemleistung

Eingangsspannung DC

44..57 V

Aufbau

Einbaumöglichkeit

19" Rackmount

Schutzlevel Gehäuse

IP30

Maße und Gewicht

Breite

280 mm

Tiefe

440 mm

Höhe

44 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..60 °C

Luftfeuchtigkeit

5-95%

MTBF

97078 h

Normen und Zertifikate

Zertifizierungen

EMI

FCC Part 15 Subpart B Class A

EMS

EN 50121-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035

Sturz

IEC 60068-2-32

Vibration und Schock

IEC 60068-2-6, IEC 60068-2-27

Maße

Bruttogewicht

5.26 kg

Nettogewicht

4.26 kg
