IS-DG408-2F

IS-DG408-2F

ISON
ART. NR.:: 56685000

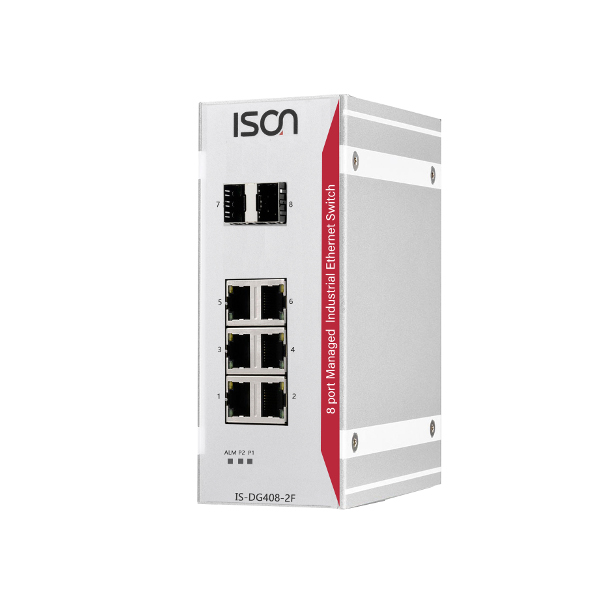

Industrial 8-port Web-Smart Din-Rail Managed Ethernet switch with 6x10/100/1000 BaseT(X) and 2x100/1000 FX/TX Combo ports, -40..+75C operating temperature, Dual 12-58V DC Power Input
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
Ethernet gesamt
8
10/100/1000 Mbit/s
6
SFP 100/1000 Mbit/s Ports
2
Netzwerk
Steuerungsprotokolle
Syslog, Telnet, SNMP, TFTP
Sicherheitsprotokolle
SSH
IEEE Norm
IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall, Desktop
Schutzlevel Gehäuse
IP30
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
1.5 kg
Nettogewicht
1 kg
Ethernet
Ethernet gesamt
8
10/100/1000 Mbit/s
6
SFP 100/1000 Mbit/s Ports
2
Netzwerk
Steuerungsprotokolle
Syslog, Telnet, SNMP, TFTP
Sicherheitsprotokolle
SSH
IEEE Norm
IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
