IS-DF406P-2F-4

IS-DF406P-2F-4

ISON
ART. NR.:: 80296800

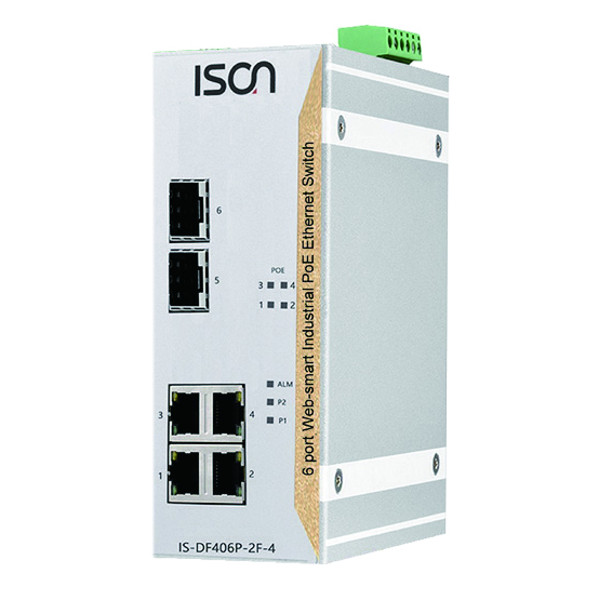

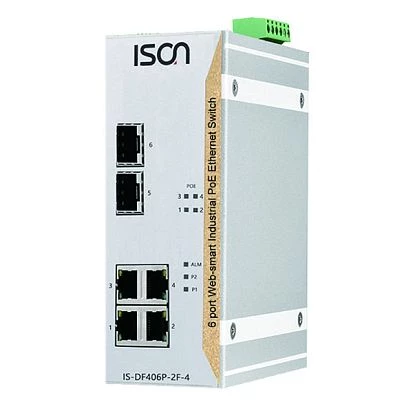

Industrial Fast Managed Switch, IP30, 4x10/100Base-T with PoE+, 2x100Base-FX SFP, 12..58 VDC, Operating Temperature -10..60 C
Preis auf Anfrage
Verfügbar
Verfügbar
Ethernet
Ethernet gesamt
4
10/100 Mbit/s
4
SFP Fast Ethernet 100 Mbit/s
2
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
MAC Table Size
16000
Max. Number of VLANs
256
Netzwerk
Steuerungsprotokolle
LLDP, Syslog, Telnet, UDP, QoS, TFTP, LACP, ARP, TCP, RARP, SNMPv1/v2c, ICMP
Reservierungs-Protokolle
STP, RSTP
Sicherheitsprotokolle
HTTPS, SSH
IEEE Norm
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Stromversorgung
Eingangsspannung DC
12..58 V
Aufbau
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
138 mm
Tiefe
58 mm
Höhe
117.95 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..60 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
1 kg
Nettogewicht
0.5 kg
Ethernet
Ethernet gesamt
4
10/100 Mbit/s
4
SFP Fast Ethernet 100 Mbit/s
2
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
MAC Table Size
16000
Max. Number of VLANs
256
Netzwerk
Steuerungsprotokolle
LLDP, Syslog, Telnet, UDP, QoS, TFTP, LACP, ARP, TCP, RARP, SNMPv1/v2c, ICMP
Reservierungs-Protokolle
STP, RSTP
Sicherheitsprotokolle
HTTPS, SSH
IEEE Norm
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Stromversorgung
Eingangsspannung DC
12..58 V
Aufbau
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
138 mm
Tiefe
58 mm
Höhe
117.95 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..60 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
1 kg
Nettogewicht
0.5 kg
Ethernet
Ethernet gesamt
4
10/100 Mbit/s
4
SFP Fast Ethernet 100 Mbit/s
2
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
MAC Table Size
16000
Max. Number of VLANs
256
Netzwerk
Steuerungsprotokolle
LLDP, Syslog, Telnet, UDP, QoS, TFTP, LACP, ARP, TCP, RARP, SNMPv1/v2c, ICMP
Reservierungs-Protokolle
STP, RSTP
Sicherheitsprotokolle
HTTPS, SSH
IEEE Norm
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Stromversorgung
Eingangsspannung DC
12..58 V
Aufbau
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
138 mm
Tiefe
58 mm
Höhe
117.95 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..60 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
1 kg
Nettogewicht
0.5 kg
Ethernet
Ethernet gesamt
4
10/100 Mbit/s
4
SFP Fast Ethernet 100 Mbit/s
2
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
MAC Table Size
16000
Max. Number of VLANs
256
Netzwerk
Steuerungsprotokolle
LLDP, Syslog, Telnet, UDP, QoS, TFTP, LACP, ARP, TCP, RARP, SNMPv1/v2c, ICMP
Reservierungs-Protokolle
STP, RSTP
Sicherheitsprotokolle
HTTPS, SSH
IEEE Norm
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Stromversorgung
Eingangsspannung DC
12..58 V
Aufbau
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
138 mm
Tiefe
58 mm
Höhe
117.95 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..60 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
1 kg
Nettogewicht
0.5 kg
Dokumente
IS-DF406P-2F-4-Datasheet.pdf
Dokumente
IS-DF406P-2F-4-Datasheet.pdf
Dokumente
IS-DF406P-2F-4-Datasheet.pdf
Dokumente
IS-DF406P-2F-4-Datasheet.pdf

Produktanfrage

IS-DF406P-2F-4
ISON
ART. NR.:: 80296800
IS-DF406P-2F-4
