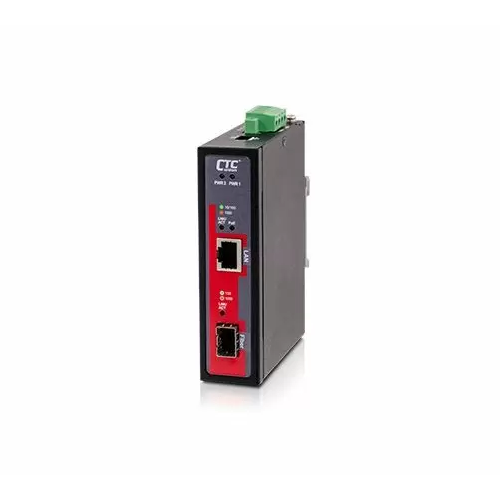

IMC-1000S-PB

IMC-1000S-PB

CTC Union
ART. NR.:: 80170400
Industrial Unmanaged Gigabit Ethernet Media Converter, IP30, 10/100/1000 Base-T to 100/1000 Base-X SFP port with PoE, 44..57 VDC input power, -20.. 70C Operating Temperature
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
Ethernet gesamt
1
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit/s Ports
1
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3bt for Power over Ethernet
Switch Properties
Jumbo Frame Size
16 kB
Stromversorgung
Eingangsspannung DC
44..57 V
Betriebsbedingungen
Maximale Betriebstemperatur
-20..70 °C
Luftfeuchtigkeit
5-95%
Aufbau
Einbaumöglichkeit
DIN-Rail mount
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
85 mm
Tiefe
30 mm
Höhe
115 mm
Normen und Zertifikate
Zertifizierungen
CE
EMI
FCC Part 15 Subpart B Class A
EMS
EN 55032, EN 55035
Sturz
IEC 60068-2-31
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
1.2 kg
Nettogewicht
0.62 kg
