Industrielle Kommunikation

Industrielle Ethernet Switches

DIN-Rail Managed Switches

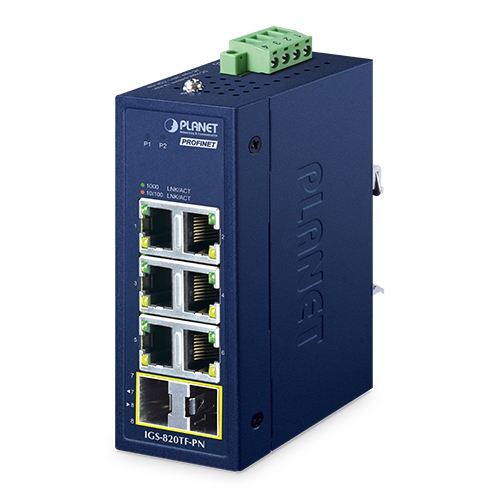

IGS-820TF-PN

IGS-820TF-PN

ART. NR.:: 80140000

Compact Industrial PROFINET Ethernet Switch, IP30, 6x10/100/1000Base-T RJ45, 2x1000Base-X SFP, 9..48VDC, -40..75C Operating Temperature

Preis auf Anfrage

Ethernet

Ethernet gesamt

6

10/100/1000 Mbit/s

6

SFP 100/1000 Mbit Ports

2

Switch Properties

Jumbo Frame Size

9 kB

Netzwerk

IEEE Norm

IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)

Systemleistung

Eingangsspannung DC

9..48 V

Aufbau

Schutzlevel Gehäuse

IP30

Maße und Gewicht

Breite

41 mm

Tiefe

70 mm

Höhe

115 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..75 °C

Luftfeuchtigkeit

5-90%

Normen und Zertifikate

Zertifizierungen

CE

EMI

FCC Part 15 Subpart B Class A

Sturz

IEC 60068-2-32

Vibration und Schock

IEC 60068-2-6, IEC 60068-2-27

Maße

Bruttogewicht

1 kg

Nettogewicht

0.35 kg
