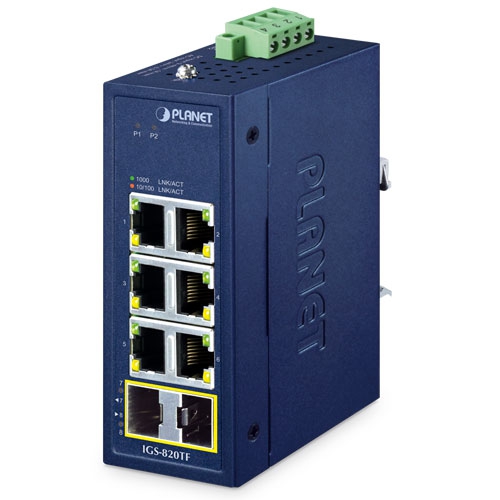

IGS-820TF

Planet
ART. NR.:: 80081200
Compact Industrial Ethernet Switch, IP30, 6x10/100/1000Base-T RJ45, 2x1000Base-X SFP, 9..48VDC, -40..75C Operating Temperature
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
Ethernet gesamt
6
10/100/1000 Mbit/s
6
SFP 1000 Mbit Ports
2
Switch Properties
Jumbo Frame Size
9 kB
Netzwerk
IEEE Norm
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet
Stromversorgung
Eingangsspannung DC
9..48 V
Aufbau
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
41 mm
Tiefe
70 mm
Höhe
115 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Normen und Zertifikate
Zertifizierungen
CE
EMI
FCC Part 15 Subpart B Class A
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
1 kg
Nettogewicht
0.35 kg
