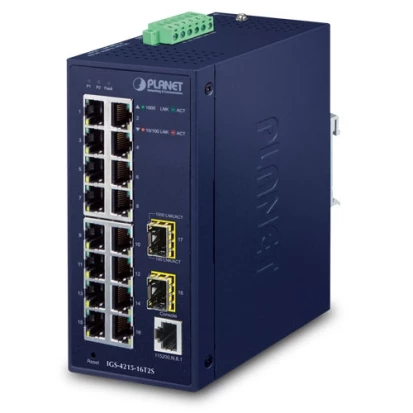

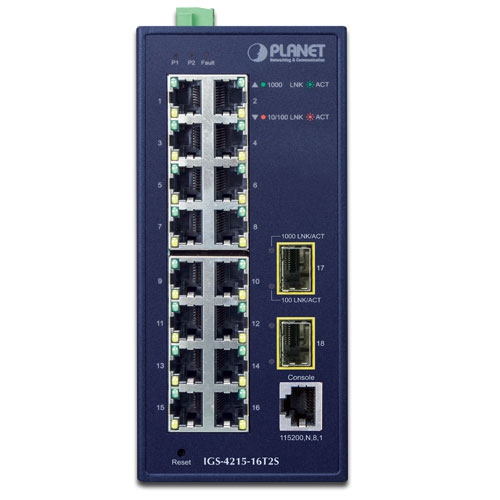

IGS-4215-16T2S

Name:

Planet Technology Corporation

10/100/1000 Mbit/s:

16

SFP Gigabit Ethernet 100/1000 Mbit/s:

2

Netzwerkprotokoll:

DHCP Option 66/67/82, SNTP, SNMPv1/v2c/v3, GVRP, HTTP, LLDP, Syslog, Telnet, RADIUS, QoS, TACACS+, ARP, STP/RSTP, MSTP, IGMP Snooping v1/v2/v3, ERPS

IEEE Norm:

IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet

IP Version:

IPv4, IPv6

Verschlüsselung:

SSH

MAC Table Size:

8000

Packet Buffer Size:

4.1 MBit

DRAM Size:

128 MB

Flash Size:

16 MB

Max. Number of VLANs:

256

VLAN ID Range:

1 - 4094

Jumbo Frame Size:

10 kB

LED:

FAULT LED, PWR1, PWR2, LNK/ACT LED

Eingangsspannung DC:

12 ... 48 V

Energieverbrauch:

12.5 W

Temperatur:

-40 ... 75 °C

Feuchtigkeit:

5 ... 95 % (non-condensing)

Temperaturbereich:

-40 ... 85 °C

Feuchtigkeit:

5 ... 95 % (non-condensing)

Einbaumöglichkeit:

Wall, DIN-Rail mount

Schutzlevel Gehäuse:

IP30

Breite:

66 mm

Höhe:

107 mm

Tiefe:

152 mm

Vibration und Schock:

IEC 60068-2-6, IEC 60068-2-27

Sturz:

IEC 60068-2-32

EMS:

EN 50121-4, EN 55032, EN 55035

EMI:

FCC Part 15 Subpart B Class A
