IGS-10020HPT-U

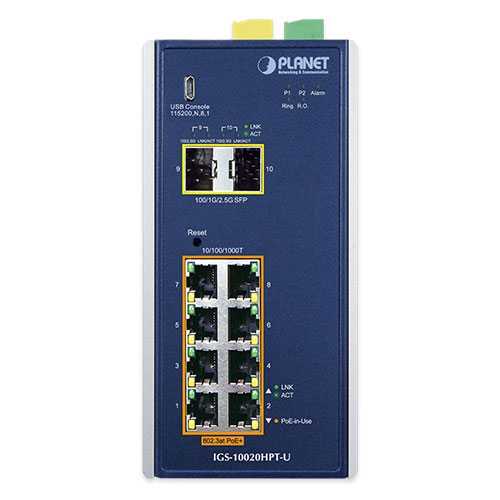

IGS-10020HPT-U

Planet
ART. NR.:: 57883300
Industrial Managed Switch, IP30 8x10/100/1000Base-T with PoE+, 2x100/1000/2500Base-X mini-GBIC SFP, 1xUSB, 2xDI, 2xDO, 12..54 VDC, Operating Temperature -40..75 C
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
Ethernet gesamt
8
10/100/1000 Mbit/s
8
SFP 2.5 Gbit/s Ports
2
PoE 10/100/1000 Mbit/s
8
Switch Properties
Jumbo Frame Size
9 kB
Netzwerk
Steuerungsprotokolle
SNMPv1/v2c/v3, Telnet, LACP, IGMP Snooping v1/v2/v3, IGMP Querier
Sicherheitsprotokolle
SSH2
IEEE Norm
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3bz for 2.5GBaseX
Stromversorgung
Eingangsspannung DC
12..54 V
Maße und Gewicht
Breite
76.8 mm
Tiefe
107 mm
Höhe
152 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
1.5 kg
Nettogewicht
1.09 kg
