IGS-1000-4UP2X

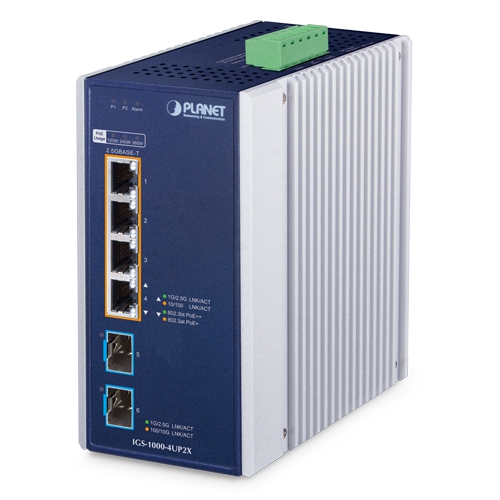

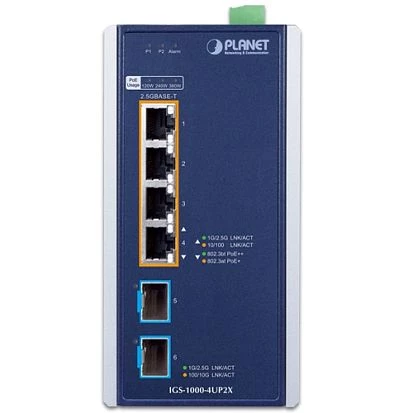

IGS-1000-4UP2X

Planet
ART. NR.:: 57956800
Industrial Managed Ethernet Switch, IP30, 4x10/100/1000Base-T with PoE, 2x10GBase-X SFP+, 48..54 VDC, Operating Temperature -40..75 C
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
2,5 Gbit/s
4
10 Gbit/s SFP+ Ports
2
Switch Properties
MAC Table Size
4000
Jumbo Frame Size
12 kB
Netzwerk
IEEE Norm
IEEE 802.1P for Class of Service, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bz for 2.5GBaseX, IEEE 802.3bt for Power over Ethernet

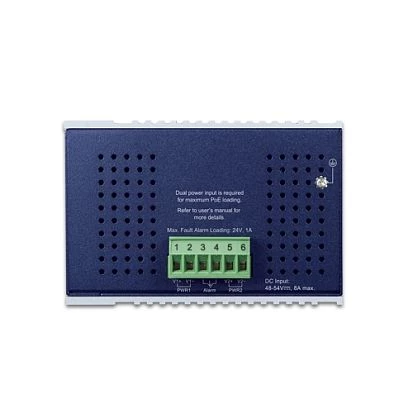

Stromversorgung
Eingangsspannung DC
48..54 V
Aufbau
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
76.8 mm
Tiefe
107.3 mm
Höhe
152 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..75 °C
Luftfeuchtigkeit
5-90%
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
2 kg
Nettogewicht
1 kg
