IGR-1604XSM-16PH

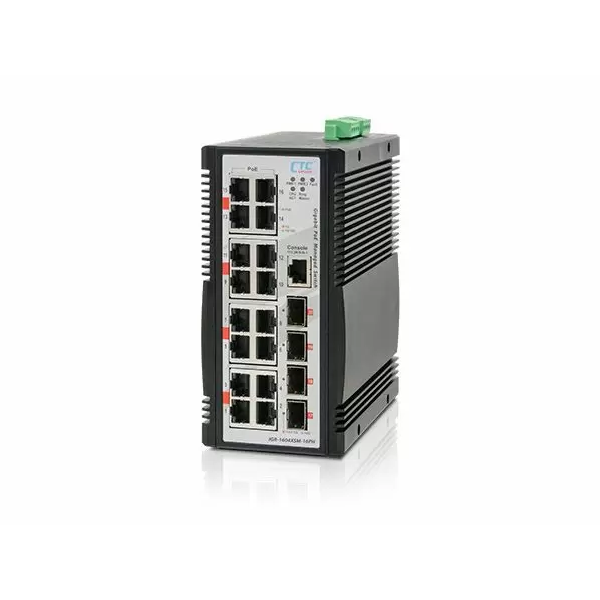

IGR-1604XSM-16PH

CTC Union
ART. NR.:: 57980700
Industrial Layer 3 10G PoE Switch, IP30, 16x10/100/1000Base-T with PoE, 4x100/1000/2.5G/5G/10G Base-X SFP Ports, Memory Buffer 4Mb, Device Memory 128Mb, Redundant Dual 46..57VDC Input Power, Operating Temperature -40..60C
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
10/100/1000 Mbit/s
16
10 Gbit/s SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
16
Schnittstellen Seriell / Parallel
RS-232
1
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
10 kB
Netzwerk
Protokoll Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF
Steuerungsprotokolle
SNMPv1/v2c/v3, HTTP, LLDP, Telnet, VLAN, QoS, DHCP, NTP, SNTP, GVRP, TFTP, CoS, TCP, IGMP Snooping v1/v2/v3
Sicherheitsprotokolle
HTTPS, SSH, RADIUS, TACACS+
IEEE Norm
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Stromversorgung
Eingangsspannung DC
46..57 V
Aufbau
Einbaumöglichkeit
DIN-Rail mount
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
155.6 mm
Tiefe
77 mm
Höhe
160 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-40..60 °C
Luftfeuchtigkeit
5-95%
MTBF
224776 h
Normen und Zertifikate
Zertifizierungen
CE
EMI
FCC Part 15 Subpart B Class A
EMS
EN 50121-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Internetsicherheit
EN 62368-1 (LVD)
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
3 kg
Nettogewicht
2 kg
