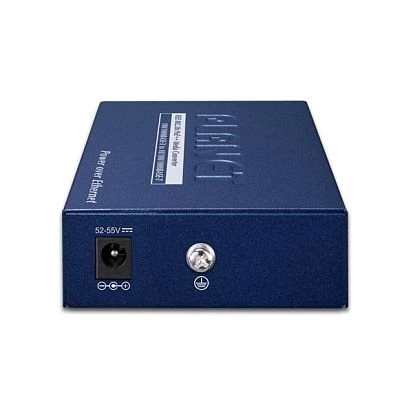

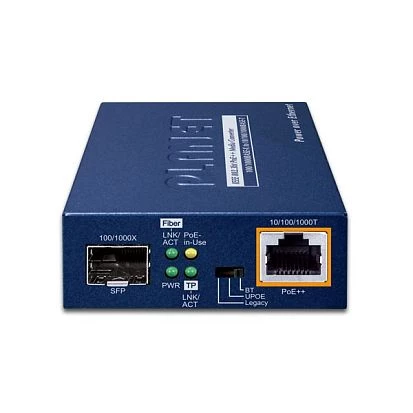

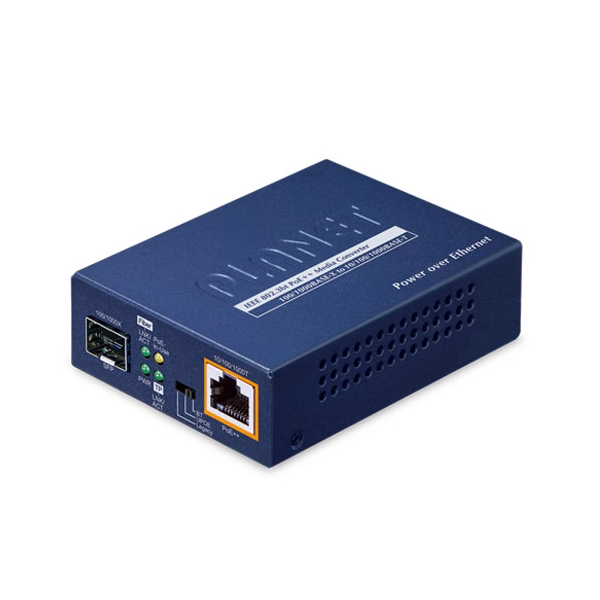

GUP-805A-95W

GUP-805A-95W

Planet
ART. NR.:: 57693700
Media Converter with 1-Port 10/100/1000Base-T with PoE, 1-Port 100/1000Base-X SFP, 52..55VDC, 95watts, 0..+50C Operating Temperature
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
10/100/1000 Mbit/s
1
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3bt for Power over Ethernet
Status LEDs / Schalter
LED
Power LED, LNK/ACT LED
Aufbau
Gehäuse
Metallgehäuse
Maße und Gewicht
Breite
94 mm
Tiefe
26 mm
Höhe
70 mm
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
0.3 kg
Nettogewicht
0.14 kg
