GT-805A-PD

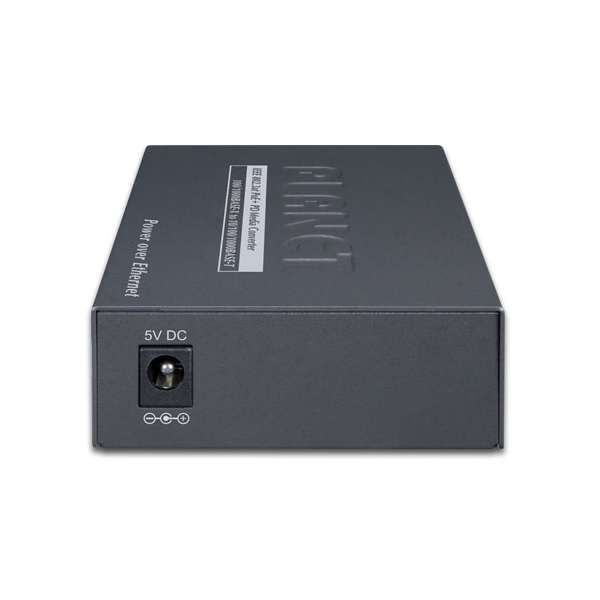

GT-805A-PD

Planet
ART. NR.:: 57527100
Gigabit Media Converter with 1x10/100/1000BASE-T Ports, 1x100/1000BASE-X SFP Ports, 48..54 V DC-In PoE, Operating Temperature 0..+50шC
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
10/100/1000 Mbit/s
1
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bt for Power over Ethernet
Switch Properties
Jumbo Frame Size
9 kB
Status LEDs / Schalter
LED
Power LED, LNK/ACT LED
Maße und Gewicht
Breite
94 mm
Tiefe
70 mm
Höhe
26 mm
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
0.5 kg
Nettogewicht
0.19 kg
Ethernet
10/100/1000 Mbit/s
1
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bt for Power over Ethernet
Switch Properties
Jumbo Frame Size
9 kB
Status LEDs / Schalter
LED
Power LED, LNK/ACT LED
Maße und Gewicht
Breite
94 mm
Tiefe
70 mm
Höhe
26 mm
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
0.5 kg
Nettogewicht
0.19 kg
Ethernet
10/100/1000 Mbit/s
1
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bt for Power over Ethernet
Switch Properties
Jumbo Frame Size
9 kB
Status LEDs / Schalter
LED
Power LED, LNK/ACT LED
Maße und Gewicht
Breite
94 mm
Tiefe
70 mm
Höhe
26 mm
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
0.5 kg
Nettogewicht
0.19 kg
Ethernet
10/100/1000 Mbit/s
1
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bt for Power over Ethernet
Switch Properties
Jumbo Frame Size
9 kB
Status LEDs / Schalter
LED
Power LED, LNK/ACT LED
Maße und Gewicht
Breite
94 mm
Tiefe
70 mm
Höhe
26 mm
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
0.5 kg
Nettogewicht
0.19 kg

Dokumente
GT-805A-PD-Datasheet.pdf
Dokumente
GT-805A-PD-Datasheet.pdf
Dokumente
GT-805A-PD-Datasheet.pdf
Dokumente
GT-805A-PD-Datasheet.pdf
