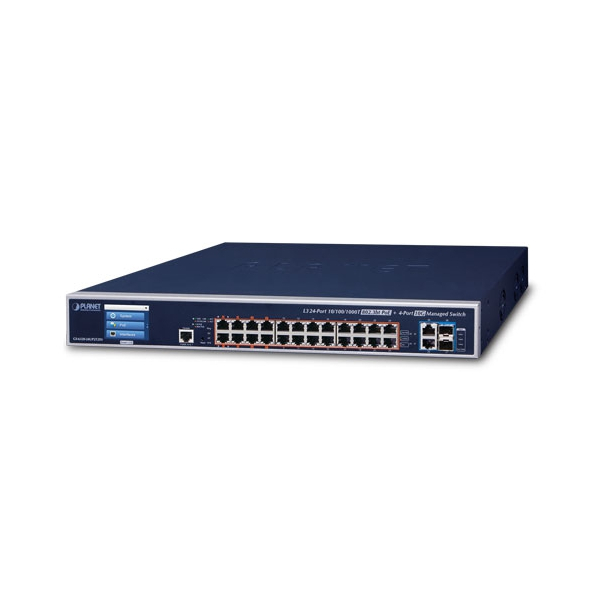

GS-6320-24UP2T2XV

Name:

Planet Technology Corporation

RS-232:

1

10 Gbit/s:

2

Typ 10 Gbit/s:

RJ-45

10/100/1000 Mbit/s:

24

Typ 10/100/1000 Mbit/s:

RJ-45

SFP+ 10 Gigabit/s Ethernet:

2

Netzwerkprotokoll:

SNMPv1/v2c/v3, SSH, Telnet, SSL, ERPS

IEEE Norm:

IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet

IP Version:

IPv4, IPv6

Verschlüsselung:

SSH, SSL

Lüfteranzahl:

3 smart fans

LED:

1xLED Lüfterstatus, PoE LED

Schnittstellen:

DB9, 7xRJ45 Ethernet, 9xRJ45 Ethernet, 10xRJ45 Ethernet

enthaltene Kabel:

10G/5G/2.5G/1G/100M BASE-T: - 10G – Cat 6A/7 - 5G – Cat 6/6A/7 - 1G/2.5G – Cat 5e/6/6A/7 - 100M – Cat 5/5e/6/6A/7 - Cat 5/5e/6/6A/7 UTP cable (maximum 100 meters) 10GBASE-LR/SR/BX: - 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m - 9/125μm single-mode fiber optic cable, up to 60km

Eingangsspannung DC:

36 ... 60 V

Eingangsspannung AC:

100 ... 240 V

Energieverbrauch:

740 W (max)

Temperatur:

0 ... 50 °C

Feuchtigkeit:

5 ... 95 % (non-condensing)

Temperaturbereich:

-10 ... 70 °C

Feuchtigkeit:

5 ... 95 % (non-condensing)

Höhe:

1.5 U

Breite:

440 mm

Höhe:

56 mm

Tiefe:

300 mm

Zertifizierungen:

CE, FCC Class A
