Industrielle Kommunikation

Industrielle Ethernet Switches

19" Managed Switches

FGSD-1821P

FGSD-1821P

ART. NR.:: 57522500

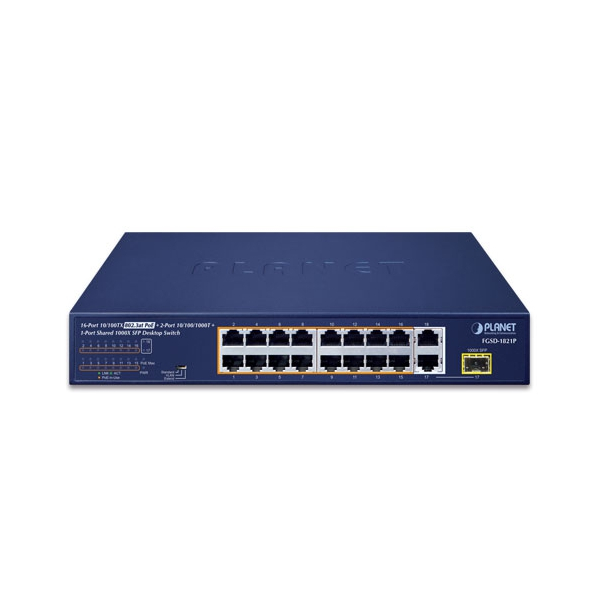

Desktop Switch with 16x10/100 Base-TX PoE Ports, 2x10/100/1000 Base-T Ports, 1x1000 Base-SX/LX/BX SFP Ports, 100..240V AC, 0..+50C Operating Temperature

Preis auf Anfrage

Ethernet

10/100 Mbit/s

16

10/100/1000 Mbit/s

2

Switch Properties

MAC Table Size

16000

Jumbo Frame Size

16 kB

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet

Schnittstellen

Schnittstellen

RJ45

Aufbau

Höhe

1 U

Maße und Gewicht

Breite

280 mm

Tiefe

180 mm

Höhe

44 mm

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

Maße

Bruttogewicht

2.5 kg

Nettogewicht

1.8 kg

Ethernet

10/100 Mbit/s

16

10/100/1000 Mbit/s

2

Switch Properties

MAC Table Size

16000

Jumbo Frame Size

16 kB

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet

Schnittstellen

Schnittstellen

RJ45

Aufbau

Höhe

1 U

Maße und Gewicht

Breite

280 mm

Tiefe

180 mm

Höhe

44 mm

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

Maße

Bruttogewicht

2.5 kg

Nettogewicht

1.8 kg

Ethernet

10/100 Mbit/s

16

10/100/1000 Mbit/s

2

Switch Properties

MAC Table Size

16000

Jumbo Frame Size

16 kB

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet

Schnittstellen

Schnittstellen

RJ45

Aufbau

Höhe

1 U

Maße und Gewicht

Breite

280 mm

Tiefe

180 mm

Höhe

44 mm

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

Maße

Bruttogewicht

2.5 kg

Nettogewicht

1.8 kg

Ethernet

10/100 Mbit/s

16

10/100/1000 Mbit/s

2

Switch Properties

MAC Table Size

16000

Jumbo Frame Size

16 kB

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet

Schnittstellen

Schnittstellen

RJ45

Aufbau

Höhe

1 U

Maße und Gewicht

Breite

280 mm

Tiefe

180 mm

Höhe

44 mm

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

Maße

Bruttogewicht

2.5 kg

Nettogewicht

1.8 kg

Dokumente

FGSD-1821P-Datasheet.pdf

Dokumente

FGSD-1821P-Datasheet.pdf

Dokumente

FGSD-1821P-Datasheet.pdf

Dokumente

FGSD-1821P-Datasheet.pdf

Produktanfrage

ART. NR.:: 57522500

FGSD-1821P

FGSD-1821P
