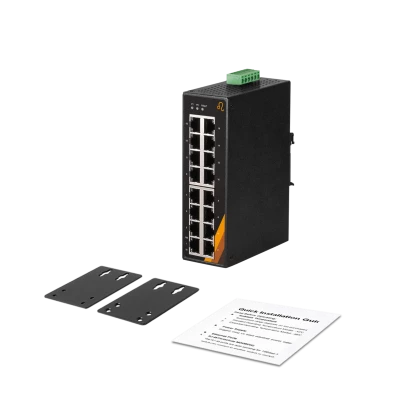

ET2-1600

ET2-1600

Leonton
ART. NR.:: 80022400
Industrial Ethernet Switch, IP30, 16x10/100Base-TX, Dual 12..48VDC, Operating Temperature -10..65 C
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
Ethernet gesamt
16
10/100 Mbit/s
16
Switch Properties
MAC Table Size
16000
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Stromversorgung
Eingangsspannung DC
12..48 V
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall
Schutzlevel Gehäuse
IP30
Maße und Gewicht
Breite
46 mm
Tiefe
142 mm
Höhe
99 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..65 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Internetsicherheit
UL 61010-2-201
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
1.2 kg
Nettogewicht
0.62 kg
