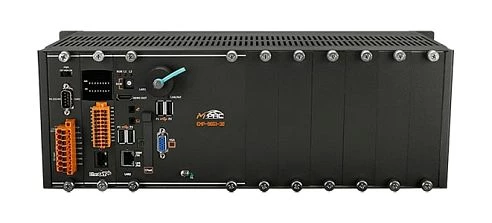

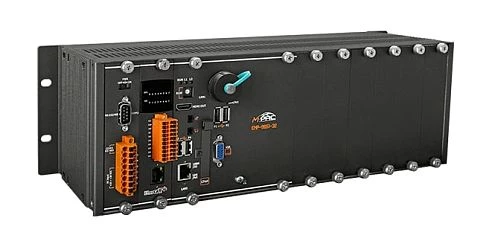

EMP-9651-32

ICP DAS
ART. NR.:: 09871500
EtherCAT Master based 9000 series PAC controller, Intel Core i5-8365UE, 16GB DDR4, 64GB SSD, 32GB CF, VGA, HDMI, 2xGbE LAN, 2xCOM, 4xUSB 2.0, 8DI 19-24VDC, 8DO 24VDC, 10-30VDC-in, Win 10 IoT, 6 expansion slots
Preis auf Anfrage
Verfügbar auf Bestellung
Verfügbar auf Bestellung
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall
CPU
Installierter Prozessor
Intel Core i5-8365UE
Maximale CPU-Frequenz
4.1 GHz
Speicher
Standard Onboard Speicher
16 GB
Einbauschacht
EEPROM-Speicherkapazität
16 kB
MRAM-Speicherkapazität
128 kB
Massenspeicher 1. Kapazität
32 GB
Schnittstelle
CFast Speicherkarten-Slots
1
Erweiterungsmodul
Gesamtanzahl
6
Unterstützt
I-9K series, I-97K series, e-9K series
Software
Betriebssystem installiert
Windows IoT Enterprise 10
Programmierverfahren
C/C++
Entwicklung Software
Visual Studio .NET, VC
Digital Eingang
Gesamtanzahl
8
Isolierter Digital-Eingang
3000 V
Typ
Wet contact
Pegel der Logik "0"
0~11 V
Pegel der Logik "1"
19~24 V
Digital Ausgang
Gesamtanzahl
8
Typ
Open-Collector
Sink/Source
Stromziehend (Sink)
Max. Ausgangsstrom
1000 mA
Ausgangsspannung
24~24 V
Ethernet
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-485
1
RS-232/485
1
USB gesamt
4
Zusätzliche Funktionen
Watchdog-Timer-Typ
Hardware, Software
Netzwerk
Industrieprotokolle
EtherCAT master
Schnittstellen
Schnittstellen
spring clamp terminal block
Grafik
Schnitstellen
HDMI, VGA
Maße und Gewicht
Breite
422 mm
Tiefe
164 mm
Höhe
133 mm
Systemleistung
Eingangsspannung DC
10..30 V
Stromversorgung Reserve-Eingang Spannung DC
10..30 V
Redundanter Stromeingang
Ja
Betriebsbedingungen
Maximale Betriebstemperatur
-25..60 °C
Luftfeuchtigkeit
10-90%
Maße
Bruttogewicht
1 kg
Nettogewicht
1 kg
