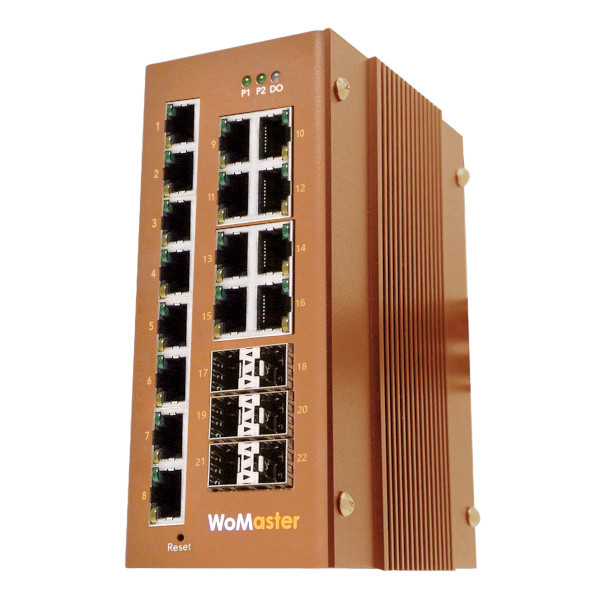

DS622

Name:

WoMaster (WoM Asia Co. Ltd)

RS-232:

1

10/100/1000 Mbit/s:

16

SFP Gigabit Ethernet 100/1000 Mbit/s:

6

Netzwerkprotokoll:

DHCP Server/Client, DHCP Option 66/67/82, SMTP, SNMPv1/v2c/v3, GVRP, HTTPS, LLDP, RMON, SSH, Syslog, Telnet, TFTP, RADIUS, QoS, TACACS+, CoS, IEEE 1588 PTP V2 (hardware-based), IGMP Snooping v1/v2/v3, IGMP Querier, SNMP Trap, SFTP, ERPS

Protokoll Layer 3:

VRRP, Static Routing, RIP V1/V2, OSPF

IEEE Norm:

IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet

IP Version:

IPv4, IPv6

MAC Table Size:

16000

Max. Number of VLANs:

256

VLAN ID Range:

1 - 4094

IGMP Groups:

512

Jumbo Frame Size:

9.216 kB

Gesamtanzahl:

1

Gesamtanzahl:

1

Eingangsspannung DC:

10 ... 60 V

Temperatur:

-40 ... 75 °C

Feuchtigkeit:

0 ... 95 % (Non-Condensing)

Temperaturbereich:

-40 ... 85 °C

Feuchtigkeit:

0 ... 95 % (Non-Condensing)

Gehäuse:

Metallgehäuse

Schutzlevel Gehäuse:

IP30

Breite:

78 mm

Höhe:

155 mm

Tiefe:

125 mm

EMS:

EN 61000-6-2, EN 61000-6-4

EMI:

FCC Part 15 Subpart B Class A, CISPR 22 Class
