EMX-WHLGP

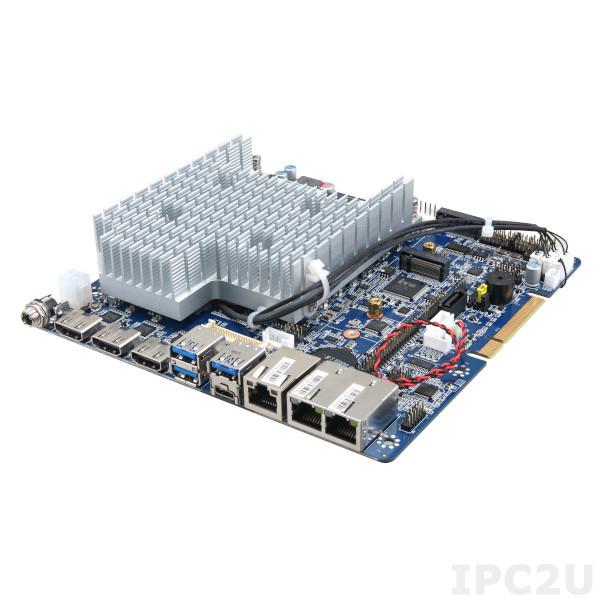

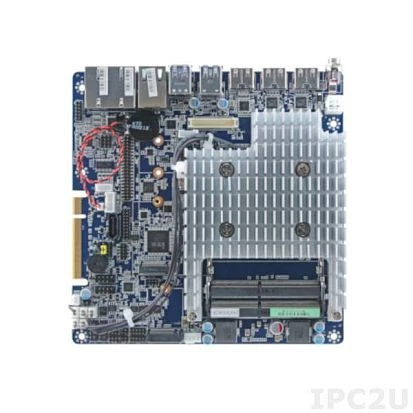

Thin Mini ITX Board, Intel Core i3/i5/i7, DDR4 2400 NHz SODIMM max.32GB, LVDS, 3xHDMI, 3xGbE, 1xSATA3, 2xRS232/422/485, 4xRS232, 3xUSB3.1, 4xUSB2.0, 2xMini PCI, Audio, 2x6W Amplifier, 8-bit GPIO, 12..24V DC

Preis auf Anfrage ()
Stk.
Bestellen
Zu den Favoriten hinzufügen Aus den Favoriten entfernen
Auf die Vergleichs Vergleichen
Hersteller:
Avalue
Formfaktor:
Thin Mini-ITX
Unterstützte Prozessoren:
Intel Core i3, Intel Core i5, Intel Core i7
Speichertyp:
DDR4 2400
Ethernet gesamt:
3
COM gesamt:
6
USB gesamt:
7
Gesamtanzahl:
1
SATA 3 Channels:
1
Spezifikationen
Hersteller
Name:
Avalue
Systemarchitektur
Formfaktor:
Thin Mini-ITX
CPU
CPU Generation/Familie:
Whiskey Lake
Unterstützte Prozessoren:
Intel Core i3, Intel Core i5, Intel Core i7
Speicher
Speichertyp:
DDR4 2400
Socket Typ:
2xSODIMM 260-pin
Maximum Speicher:
32 GB
Grafik
Schnitstellen:
LVDS, 3xHDMI
Netzwerk Adapter
Controller Typ:
Intel i210-IT, Intel i219-LM
Ethernet gesamt:
3
10/100/1000 Mbit/s:
3
Schnittstellen Seriell / Parallel
COM gesamt:
6
RS-232:
4
RS-232/422/485:
2
USB gesamt:
7
USB 2.0:
4
USB 3.1:
3
Digital Eingang / Ausgang
GPIO:
8xDigital In / 8xDigital Out
Steckplätze
Gesamtanzahl:
1 (M.2 Key A 2230 support WiFi module ( 1 x PCI-e x 1 & USB 2.0 Signal))
Mini-PCIe/Mini Card:
1
M.2:
1 (M.2 Key B 3042/2242/2260/2280 support WWAN+GNSS or SSD with 1 x SIM card slot)
Speicher Controller
SATA 3 Channels:
1
Zusätzliche Funktionen
Anzahl SIM Kartenhalter:
1
Schnittstellen
Schnittstellen:
LVDS, 3xRJ45, 9xUSB, Mic In, Line Out, 3xHDMI
Systemleistung
Eingangsspannung DC:
12 ... 24 V
Betriebsbedingungen
Temperatur:
-20 ... 60 °C
Feuchtigkeit:
0 ... 90 %
Maße und Gewicht
Breite:
170 mm
Länge:
170 mm
Dokumentation

Größe

Gewicht

Bruttogewicht: 1.1 kg
Nettogewicht: 0.7 kg
