Industrie Panel PCs

Panel PCs Class 1/Div 2 ATEX Zone 2

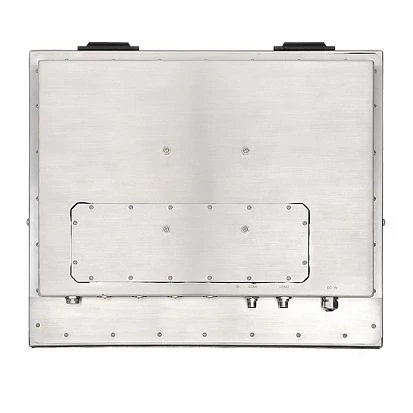

WTPE-9E66-15W

WTPE-9E66-15W

ART. NR.:: 56856300

Fanless Stainless Panel PC 15" TFT LCD, full IP66-rated, resistive touch, Intel Core i5-6200U, 4Gb DDR4, 128Gb MLC SSD, Waterproof gland:2xUSB 2.0, 2xGbit LAN, 2xM12 COM, 1xMini-PCIe, 1xM.2 Type E, AC-DC adapter, -20..+60 Temp

Preis auf Anfrage

Aufbau

Gehäuse

Edelstahl

Einbaumöglichkeit

Wall VESA 100

Schutzlevel Frontseite (Panel)

IP66

Schutzlevel Gehäuse

IP66

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

15 "

Maximale Auflösung

1024x768 Dots

Seitenverhältnis

4:3

Helligkeit

450 Cd/m2

Kontrastverhältnis

600~1

Touch Screen

Touch Screen Art

resistiv

CPU

CPU Generation/Familie

Skylake

CPU-Support-Typ

Core i3, Core i5, Core i7

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

ECC

No

Maximum Speicher

32 GB

Grafik

Grafikcontroller

Intel HD Graphics 520

Ethernet

Ethernet gesamt

2

10/100/1000 Mbit/s

2

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232

1

RS-232/422/485

1

USB gesamt

4

USB 2.0

2

Laufwerksschächte

Gesamtanzahl

1

2.5" intern

1

Steckplätze

Mini-PCIe/Mini Card

1

Schnittstellen

Schnittstellen

2xDB9, 2xRJ45 Ethernet, 2xUSB

Maße und Gewicht

Breite

435 mm

Höhe

350 mm

Tiefe

84 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-20..60 °C

Normen und Zertifikate

Zertifizierungen

CE, FCC

Explosionsschutz

IECEx, ATEX Zone 2 Group II

Internetsicherheit

EN 62368

Maße

Bruttogewicht

12 kg

Nettogewicht

11 kg

Dokumente

Datasheet_WTPE_9E66_15W__34737076.pdf
