WR222-WLAN+NB1+M1

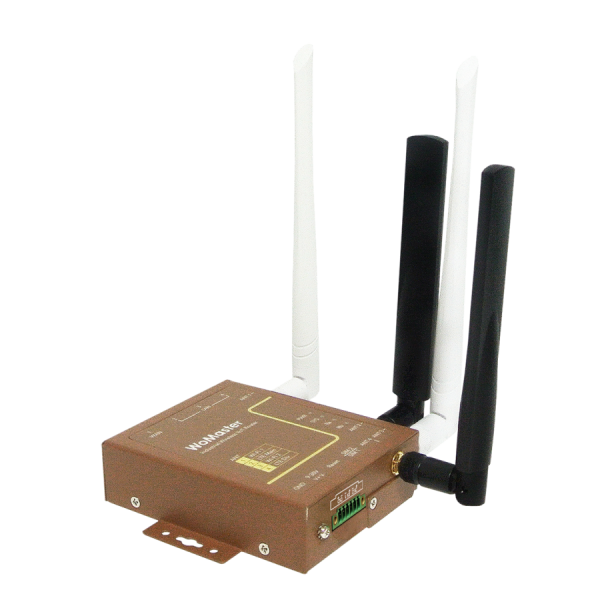

WR222-WLAN+NB1+M1

WoMaster
ART. NR.:: 57665500
Compact IP30 LTE Wi-Fi Cellular Gateway, 2-Port 10/100Base-TX, NB1+M1, 1xDB9, 1xMicroSD, 1xSIM, 1xDO, 1xDI, 9..30VDC, -40..75 C Operating Temperature
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
10/100 Mbit/s
2
Schnittstellen Seriell / Parallel
RS-232/422/485
1
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.11a/b/g/n for Wireless LAN, IEEE 802.11i for Wireless Security, IEEE 802.3u for 100BaseT(X)
Digital Eingang
Gesamtanzahl
2
Digital Ausgang
Gesamtanzahl
2
Schnittstellen
Schnittstellen
DB9, 2xRJ45, SIM Card Slot
Maße und Gewicht
Breite
86 mm
Tiefe
29 mm
Höhe
105 mm
Normen und Zertifikate
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Maße
Bruttogewicht
0.54 kg
Nettogewicht
0.3 kg
Ethernet
10/100 Mbit/s
2
Schnittstellen Seriell / Parallel
RS-232/422/485
1
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.11a/b/g/n for Wireless LAN, IEEE 802.11i for Wireless Security, IEEE 802.3u for 100BaseT(X)
Digital Eingang
Gesamtanzahl
2
Digital Ausgang
Gesamtanzahl
2
Schnittstellen
Schnittstellen
DB9, 2xRJ45, SIM Card Slot
Maße und Gewicht
Breite
86 mm
Tiefe
29 mm
Höhe
105 mm
Normen und Zertifikate
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Maße
Bruttogewicht
0.54 kg
Nettogewicht
0.3 kg
Ethernet
10/100 Mbit/s
2
Schnittstellen Seriell / Parallel
RS-232/422/485
1
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.11a/b/g/n for Wireless LAN, IEEE 802.11i for Wireless Security, IEEE 802.3u for 100BaseT(X)
Digital Eingang
Gesamtanzahl
2
Digital Ausgang
Gesamtanzahl
2
Schnittstellen
Schnittstellen
DB9, 2xRJ45, SIM Card Slot
Maße und Gewicht
Breite
86 mm
Tiefe
29 mm
Höhe
105 mm
Normen und Zertifikate
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Maße
Bruttogewicht
0.54 kg
Nettogewicht
0.3 kg
Ethernet
10/100 Mbit/s
2
Schnittstellen Seriell / Parallel
RS-232/422/485
1
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.11a/b/g/n for Wireless LAN, IEEE 802.11i for Wireless Security, IEEE 802.3u for 100BaseT(X)
Digital Eingang
Gesamtanzahl
2
Digital Ausgang
Gesamtanzahl
2
Schnittstellen
Schnittstellen
DB9, 2xRJ45, SIM Card Slot
Maße und Gewicht
Breite
86 mm
Tiefe
29 mm
Höhe
105 mm
Normen und Zertifikate
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Maße
Bruttogewicht
0.54 kg
Nettogewicht
0.3 kg

Dokumente
WR222-WLAN-Datasheet.pdf
Dokumente
WR222-WLAN-Datasheet.pdf
Dokumente
WR222-WLAN-Datasheet.pdf
Dokumente
WR222-WLAN-Datasheet.pdf

Produktanfrage

WoMaster
ART. NR.:: 57665500
WR222-WLAN+NB1+M1
