W32L100-MLA2FP-HB

W32L100-MLA2FP-HB

Winmate
ART. NR.:: 07924900

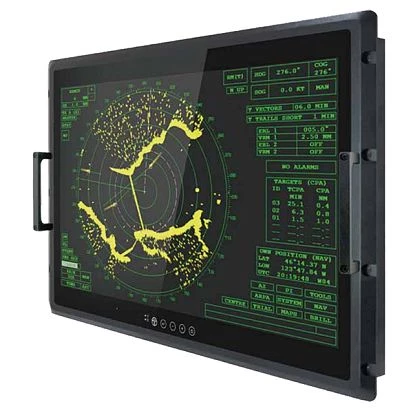

32" Military Display with UHD 4K (3840 x 2160), 700 cd/m2, Projected Capacitive Multi Touch, DVI, VGA, HDMI, 24V DC, -25 to 65C Operation Temperature
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Einbaumöglichkeit
19" Rackmount, Panel, Wall VESA 100, VESA 200x100
Display
Diagonale
32 "
Maximale Auflösung
4096x2160 Dots
Helligkeit
350 Cd/m2
Kontrastverhältnis
1000~1
Touch Screen
Touch Screen Art
kapazitiv
Schnittstellen
Schnittstellen
DVI, DB15 VGA, 2xHDMI, Line In, Display port
Stromversorgung
Eingangsspannung DC
24..24 V
Eingangsspannung AC
100..240 V
Betriebsbedingungen
Maximale Betriebstemperatur
-20..55 °C
Maße und Gewicht
Breite
800 mm
Höhe
485 mm
Tiefe
73.25 mm
Maße
Bruttogewicht
11.5 kg
Nettogewicht
9.5 kg
Aufbau
Einbaumöglichkeit
19" Rackmount, Panel, Wall VESA 100, VESA 200x100
Display
Diagonale
32 "
Maximale Auflösung
4096x2160 Dots
Helligkeit
350 Cd/m2
Kontrastverhältnis
1000~1
Touch Screen
Touch Screen Art
