W15L100-PPB2

W15L100-PPB2

ART. NR.:: 10760000

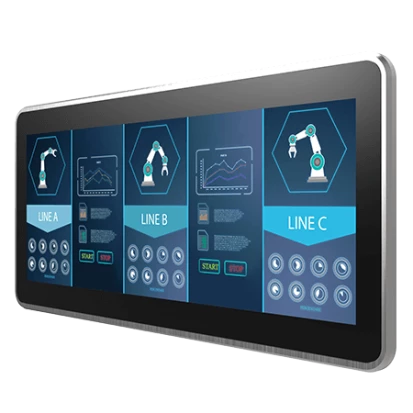

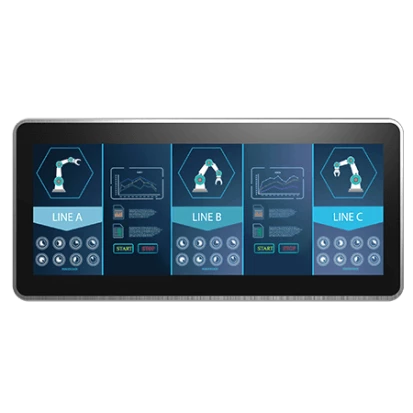

14.9" Industrial Panel Display, IP65 Front, 1920x720 TFT LCD, 950cd/m2, PCAP Touch, VGA, HDMI Opt., DVI Opt., 1xUSB, Audio Opt., 12VDC-in w/ PSU

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

Panel, Wall VESA 75

Schutzlevel Frontseite (Panel)

IP65

Material Frontseite (Panel)

Aluminium

Display

Bildschirmtyp

LCD TFT

Diagonale

14.9 "

Maximale Auflösung

1920x720 Dots

Helligkeit

950 Cd/m2

Kontrastverhältnis

1000~1

Input Schnittstelle

HDMI, VGA

Touch Screen

Touch Screen Art

kapazitiv

Schnittstelle

USB

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off, Tastenfeld

Schnittstellen

Schnittstellen

DB15 VGA, 1xUSB, DC Input

Stromversorgung

Eingangsspannung DC

12..12 V

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Luftfeuchtigkeit

10-90%

Temperatur (Lagerung)

-10~+60

Maße und Gewicht

Breite

400 mm

Höhe

187.6 mm

Tiefe

59 mm

Normen und Zertifikate

Zertifizierungen

CE, FCC

Maße

Bruttogewicht

6.5 kg

Nettogewicht

5.5 kg

Dokumente

W15L100-PPB2-Datasheet.pdf
